Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
TIG Welding Accessories

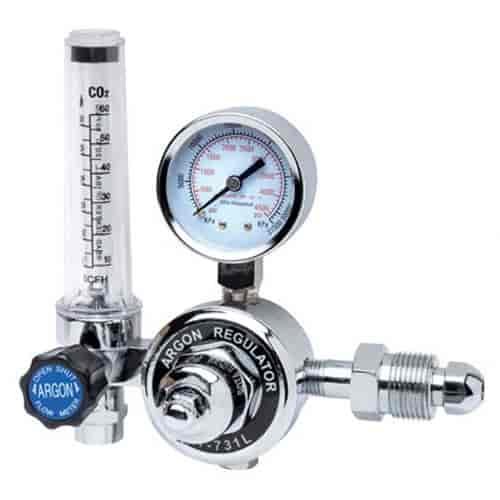

- Welding Flow Meter
- For MIG and TIG Welders
- Dual Calibrated Flow Meter for Argon or CO2
- 0-4500 psi Inlet Pressure
- 10-60 SCFH Flow Meter Gauge Range
Specifications: - Inlet connection: CGA 580
- Sintered bronze inlet filter
- 2" Diameter high pressure gauge (gas cylinder pressure)
- Inlet pressure gauge range: 0-4500 psi (0-31500KPa)
- Gas use: Argon, Argon/CO2, CO2
- Shielded, shatter-resistant polycarbonate Flow Meter
- Flow Meter gauge range: 10-60 SCFH
- Outlet connection: 5/8" x 18, internal RH thread
- Outlet pressure (pre-set): 50 psi
- External safety pressure relief This Flow Meter is calibrated in SCFH. It is able to regulate gas flow of Argon, CO2 and CO2/Argon mix. Take your TIG welding to the next level by regulating your gas flow for each job, so that you are not wasting gas or supplying an insufficient amount of shielding gas to your welds.
- Eastwood's TIG 200 Welder is an engineered 200-amp TIG Welder that offers affordable, professional-quality TIG welding on aluminum, stainless or steel (sheet, tube or bar stock), and precise welding of thinner-gauge materials up to 1/4" thick. Features an AC/DC switch that allows both steels and aluminum to be welded with the same machine. With a 14' torch and a 10' ground cable, you'll be able to get into any space with this exceptional machine. It has pre- and post-flow adjustment knobs to protect your weld and torch. It even has a foot pedal to control amperage so you can get going quickly, without the need to dial-in the machine for a specific material. Powered through a NEMA50 plug.Features
- Operates on either 110vAC 15-amp circuit or 220vAC 30-amp circuit
- 1/4"-thick welding capacity
- High-frequency start for precise arc control
- Square-wave inverter for accurate aluminum welding
- "WP-17" type torch accepts common cups and collets, up to 1/8" electrodes
- Duty cycle: 45% at 150 amps
JEGS Easy Kits are designed by JEGS high performance racing professionals to help you get all the performance parts you need for your race car, hot rod or truck.
Product LineEastwood TIG Welder
BrandEXEDY CLUTCH
Package Height3.8
Package Width6.0
Package Length7.2
Weight2.33 PG
Package Qty1
Package TypeEA
