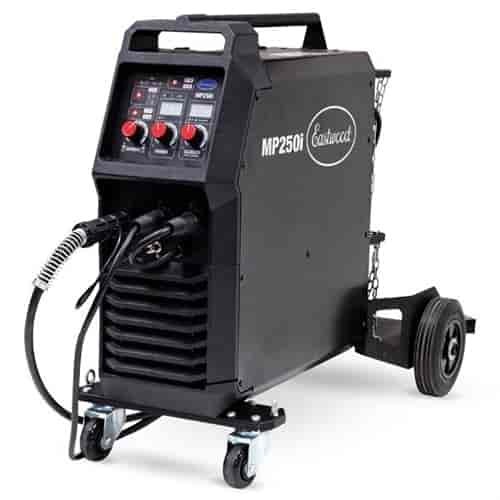

MP250i Multi Process 250 Amp Welder
Product Discontinued
EXEDY CLUTCHPART NUMBER: 352-21180

MP250i Multi Process 250 Amp Welder

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

MP250i Multi Process 250 Amp Welder
  • MIG, TIG or ARC (Stick) Weld

    Includes:

    • Eastwood 250 amp MultiProcess Welder
    • ERGO24 MIG Torch 4.5m (15 feet)
    • WP26V TIG Torch 4.5m (15 feet)
    • 300 amp Electrode Holder 4.5m (15 feet)
    • 300 amp Ground Cable 4.5m (15 feet)
    • Adaptor Cord
    • TIG consumables
    • 0.030 and 0.035 MIG tips
    • Gas Bottle chains
    • Gas Hose
    • Instruction Manual



    Specifications:

    • Power Voltage (V): 1 phase 240V+/-10%, 1 phase 120V+/-10%
    • Frequency (Hz): 50/60
    • No Load Voltage (V): 61
    • Rated Input Current (Amps) 240V: MIG = 47.3, TIG = 35.7, ARC = 53.5
    • Rated Input Current (Amps) 120V: MIG = 42, TIG = 31.2, ARC = 51.1
    • Output Current Adjustment (Amps) 240V: MIG = 50-250, TIG = 15-250, ARC = 25-250
    • Output Current Adjustment (Amps) 120V: MIG = 50-140, TIG = 15-140, ARC = 25-140
    • Output Voltage (V) 240V: MIG = 16.5-26.5, TIG = 10.6-20, ARC = 21-30
    • Output Voltage (V) 120V: MIG = 16.5-21, TIG = 10.6-15.6, ARC = 21-25.6
    • Duty Cycle: 60% @ 250 aMPS
    • Power Factor: 0.73
    • Efficiency (%): 80
    • Wire Feed Speed (in/min): 78-629
    • Post Flow Time (seconds): 1.0+/-0.05
    • Weight:150 lbs. (43.6kg)
    • Dimensions: 36"x21"x31" (900mm x 765mm x 765mm)



  • BrandEXEDY CLUTCH
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Some parts are not legal for use in California or other states with similar laws / regulations
