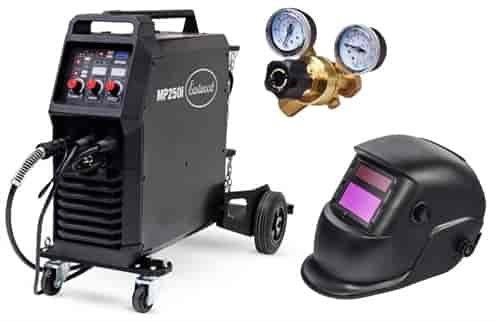

MP250i Multi Process 250 Amp Welder Kit

Name: MP250i Multi Process 250 Amp Welder Kit
Brand: EXEDY CLUTCH
SKU: 352-21180K
Price: 1090.47 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

MIG, TIG or ARC (Stick) Weld
Includes:

MP250i Multi Process 250 Amp Welder

Dual CO2/Argon Regulator

Adjustable Welding Helmet

Kit Includes:

Eastwood MP250i Multi Process 250 Amp Welder - 352-21180
Eastwood Dual CO2/Argon Regulator - 352-12238
JEGS Adjustable Welding Helmet - 555-81544

Welder Includes:

Eastwood 250 amp MultiProcess Welder
ERGO24 MIG Torch 4.5m (15 feet)
WP26V TIG Torch 4.5m (15 feet)
300 amp Electrode Holder 4.5m (15 feet)
300 amp Ground Cable 4.5m (15 feet)
Adaptor Cord
TIG consumables
0.030 and 0.035 MIG tips
Gas Bottle chains
Gas Hose
Instruction Manual

Specifications:

Power Voltage (V): 1 phase 240V+/-10%, 1 phase 120V+/-10%
Frequency (Hz): 50/60
No Load Voltage (V): 61
Rated Input Current (Amps) 240V: MIG = 47.3, TIG = 35.7, ARC = 53.5
Rated Input Current (Amps) 120V: MIG = 42, TIG = 31.2, ARC = 51.1
Output Current Adjustment (Amps) 240V: MIG = 50-250, TIG = 15-250, ARC = 25-250
Output Current Adjustment (Amps) 120V: MIG = 50-140, TIG = 15-140, ARC = 25-140
Output Voltage (V) 240V: MIG = 16.5-26.5, TIG = 10.6-20, ARC = 21-30
Output Voltage (V) 120V: MIG = 16.5-21, TIG = 10.6-15.6, ARC = 21-25.6
Duty Cycle: 60% @ 250 aMPS
Power Factor: 0.73
Efficiency (%): 80
Wire Feed Speed (in/min): 78-629
Post Flow Time (seconds): 1.0+/-0.05
Weight:150 lbs. (43.6kg)
Dimensions: 36"x21"x31" (900mm x 765mm x 765mm)

The Eastwood 250 amp Multi Process Inverter welder provides the ability to MIG, TIG or ARC (Stick) weld all from a single, high-powered, self-contained unit. The powerful IGBT inverter based power supply is capable of over 250 amp output on 240VAC with a 60% at 250 amp duty cycle. Configured to hold either 8" or 12" spools of wire and utilizes up to 0.045" wire diameters for complete versatility. Weld thin sheet metal or up to 1/2" steel plate. The MP250i welder can also TIG weld, Stick weld or use a spool gun for aluminum.

Features:
