Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Welding Helmets

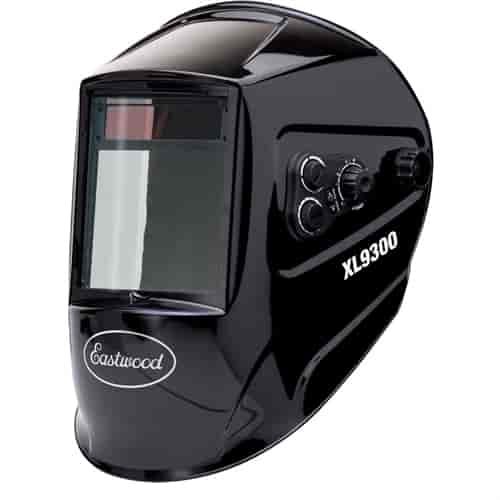

Extra Large View Auto Darkening Welding HelmetViewing area: 3.9'' x 3.6'' Black
Features:
- Durable and Lightweight
- Impact Resistant Nylon
- Multi-Adjustable Head Band
- Variable #4 to #13 Shade
- Extra Large Viewing Area
- Grind Feature
- Optical Clarity 1/1/1/2
- Magnifying Lens Compatible
Specifications:
- Color: Gloss Black
- Cartridge Size: 4.5in. x 5.25in. (114mm x 133mm)
- View Window Size: 3.9in. x 3.6in. (100mm x 93mm)
- Optical Clarity: 1/1/1/2
- Magnifying Lens Compatible: (Plate size: 2” x 4.25”)
- Number of Sensors: 4
- Shade Control: Outside and step-less
- Variable Welding Shades: Light state: DIN 4, Dark state DIN 5-9/9-13 with Grind
- Sensitivity control: Variable Shade, Delay and Light sensitivity
- Power: Replaceable Li-Mn & Solar Combination with arc charging for up to 3 years usage
- Light to Dark Switch Time: 1/25000 sec.
- Delay Control (dark to light): 0.15 sec. min. -0.8 sec.max
- TIG capability: >2 amps
- Certification: CE, ANSI, RoHS
- Operating Temp: 23-131 deg. F (-5-55 deg. C)
- Weight: 1.09lbs. (495g)
Eastwood Welding Helmets contain infinitely adjustable sensitivity, delay, and shade adjustment. 0.0025 per second darkening feature with robust Li-Mi battery that charges with arc and solar power.
Features
- Battery life is approximately 5000 welding hours
- Features replaceable lens protectors
- Adjustable head band
- Features a very durable nylon constructed shell
Product LineEastwood Welding Helmets
BrandEXEDY CLUTCH
Package Height9.5
Package Width9.9
Package Length13.7
Weight2.02 PG
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
