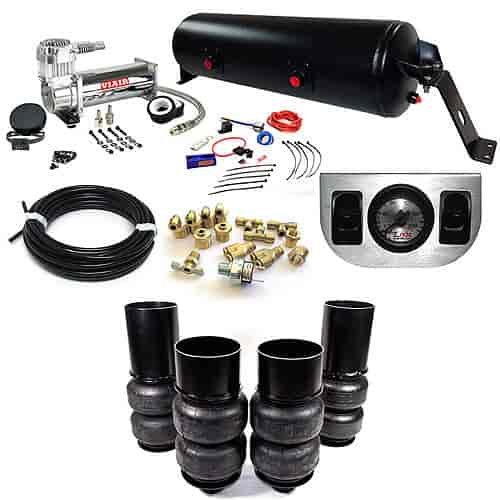

Classic Air Suspension Kit 1965-1970 Impala, Bel-Air, Biscayne, Caprice, Full Size Wagons

Name: Classic Air Suspension Kit 1965-1970 Impala, Bel-Air, Biscayne, Caprice, Full Size Wagons
Brand: EZ AIR RIDE
SKU: 373-CL65FP
Price: 1302.99 USD
Availability: InStock

^$1,302⁹⁹

Ships on Feb 19, 2027

Lowest Price Guarantee

Currently Unavailable

This product is currently not available. Please call customer service for assistance at 1-800-345-4545.

1965-1970 Impala, Bel-Air, Biscayne, Caprice, Full Size Wagons
2-Way System

7-Gallon Tank
This custom designed tank features specially designed brackets that act as feet so the tank will mount easily in your trunk. This tank comes with 5 ports total - (2) 3/8" ports on the ends, (2) 1/2" ports on the opposing faces, and a 1/4" port for the drain on the bottom.
A common misconception with an aluminum tank is that users do not have to worry about rust. True, aluminum does not rust. But condensation will occur in any tank, getting into your air lines and valves causing rust and contaminating other major components. EZ Air Ride tanks are made of steel and has a coating inside and out for years of corrosion protection. This tank will last as long as you let it, if properly taken care for.

Tank Specs:
Weight: 22 pounds
Tank Length: 29" (overall length 33" with side flanges)
Diameter: 8"

Viair 444c Chrome Compressor
This heavy duty compressor brings the performance of a Viair 480C at less cost, less weight and less heat. This compressor is designed from the ground up to provide insane reliability paired with the performance you expect from a Viair product. The 444C air compressor features a brand new, patent-pending, "intercooler" head design that helps disperse heat much more efficiently! It will fill a 2.5 gallon (11 liter) tank from 0 to 200 PSI in five minutes reliably and recharge from 165 back to 200 PSI in under a minute and a half!

FB Analog Gauge Control Panel - 2-Way System
The Classic kits gauge panel features a single domed glass, dual-needle gauge (an EZ Air Ride exclusive design) along with dual paddle air valves for front (left and right) and rear (left and right) system control. These billet gauge panels were designed to give you that classic look when mounting them in your vehicle.
Technical Note: The Classic Kit is a 2-way system design which means one switch controls the pressure in a pair of air bags. That means, on a typical vehicle with four airbags, you have one valve and air line for the two front airbags and only one valve and air line for the two rear airbags. While cornering, with a 2-way system, the airbag being compressed or "loaded" will transfer and increase the air pressure to the opposite side air bag. This pressure transfer will "lift" the side of the car on the inside of the turn, increasing body roll which greatly decreases handling characteristics. When using a 2-way system, it is strongly recommended that a sturdy front and rear sway bar (anti-roll bar) be used.
A 4-way system has four air valves, which allows you to better "tune" your ride and handling however you see fit. A 4-way dedicates a single valve and air line to each airbag which means the pressure you set for that airbag remains constant, no matter what! Which means, plain and simply, A 4-way system presents a much more stable, predictable and safe handling vehicle.

Classic Fitting Pack
This pack comes with all of the EZ Air Ride fittings you need to assemble an EZ Air Ride kit. This fitting pack is compatible with any 2-way gauge system that consists of 2 paddle valves, 1 dual needle pressure gauge, 4 half inch ported air bags, and any air tank with (2) 3/8" bungs, (2) 1/2" bungs, and a 1/4" drain bung.

Pack Includes:
(4) 1/2" to 1/4" Brass Click Connect 360 Degree Swivel Elbow
(2) 1/2" to 1/4" Brass Click Connect Straights
(2) 1/8" NPT to 1/4" Air Line Push Connect 360 Degree Swivel Elbow
(3) 1/4" "T" Brass Click Connect One Touch Fitting
(2) 1/4" "Y" Brass Click Connect
165-200 PSI Pressure Switch
Brass Air Tank Petcock
(2) Brass 1/4" to 3/8" NPT Reducer Bushing

1965-1970 Impala, Bel-Air, Biscayne, Caprice, Full Size Wagons Front Air Bag Brackets
EZ Air Ride "SET IT AND FORGET IT" line of brackets were designed with you in mind. They have custom made these brackets to fit your specific year vehicle. They are 100% bolt on and require absolutely no welding. Just bolt these in place of your factory coils and you're done. It's as simple as that; just SET IT AND FORGET IT. Each and every bracket is powder coated, labeled and includes all necessary hardware.

1965-1970 Impala, Bel-Air, Biscayne, Caprice, Full Size Wagons Rear Air Bag Brackets
EZ Air Ride "SET IT AND FORGET IT" line of brackets were designed with you in mind. They have custom made these brackets to fit your specific year vehicle. They are 100% bolt on and require absolutely no welding. Just bolt these in place of your factory coils and you're done. It's as simple as that; just SET IT AND FORGET IT. Each and every bracket is powder coated, labeled and includes all necessary hardware.

Air-Lift Dominator Air Bags
The Air Lift Performance Dominator features an unprecedented maximum restrained pressure of 600 psi. This bad boy will give you the performance you crave. With more lift, a softer, smoother ride, and the lowest price in the industry, you can't go wrong with the new Dominator! This air bag features a single 1/2" port.

Leak Free EZ Air Tube
This D.O.T. Nylon Reinforced Air Line is manufactured by EZ Air Ride and made out of Nylon with leak free technology. They supply you with enough of this air line to bag your entire ride.

EZ Air Ride Survival Kit
Don't let the other guys charge you $50-$80 for this kit, EZ Air Ride includes it for free!

Survival Kit Includes:
Relay
Relay Wire Harness
40-Amp Fuse w/holder
8-Gauge Power Wire (OXY Free/Not CCA)
PTFE Tape
Thread Locker/Loctite
Cable Ties
Flashlight
Stickers

EZ Air Ride Spare Air Kit
EZ Air Ride brings you the all new Spare Air Kit! Now you can fill up your tires, spray off dust or water with your on board air. The Spare Air kit includes a special brass "T" fitting to connect your pressure switch and a quick connect valve to your 7-Gallon EZ Air Tank. Our Spare Air kit also allows you to fill up your air tank with the compressor in your garage or at a gas station. EZ Air Ride suspension kits are the first and only to now feature on board air as a no-cost luxury that comes standard in every kit. Make your air ride kit more universal with EZ Air Ride's all new Spare Air.

Spare Air Kits Include:
Brass "T"
Quick Connect
25' Coil Air Hose
Pencil Air Blowgun
