Fabtech Motorsports K1068 Features:

Our 6 Basic System for the factory Aluminum suspension has been designed utilizing our industry leading crossmember and spindle technology. Lift is accomplished by utilizing the factory front Coilover shocks with steel spacers that helps retain the stock ride of the front suspension. The 1/4 thick steel lower control arm has been formed to fit to the bottom of the 2014 frame without having to cut or modify it for a fast installation. Extensive design work was given to the extended length steering knuckles specifically for the Aluminum component version keeping track width near stock and working properly with the Stablitrac? safety functions. The front differential is relocated with heavy duty brackets while a tightly formed 1/4 thick steel skid plate provides protection for offroad use. The rear suspension is upgraded with add a leafs and 5 tall blocks and u bolts. The stock rear shocks are replaced with Performance shocks for increase dampening.

• Everything You Will Need To Lift Your Vehicle
• Utilizes The Stock Radius Arm
• Designed For The Budget Minded Enthusiast
• w/Performance Shocks; 6 in. Lift; For Use w/Factory Aluminum Suspension
• Will Not Fit AWD Models~Use 35/12.50R17 Tires w/17X8 Wheels w/5 in. BS; Minor Trim~Use 325/65R18 Tires w/18X9 Wheels w/5 in. BS; Minor Trim~Use 35/12.50R20 Tires w/20X9 Wheels w/5 in. BS; Minor Trim~Can Not Use OEM Wheel And Tire~Incl. Crossmembers And Support Tube/Sway Bar Frame Bracket~Differential Skid Plate And Bracket/Shock Extension And Mount To Arm~Shock Bracket/Rear Add-A-Leaf/Spindles/CV Spacer/5 in. Blocks/U-Bolts~Rear Bump Stop Spacers/Rear Shocks/All Required Hardware~Will Not Fit Vehicles With Auto Ride Shocks

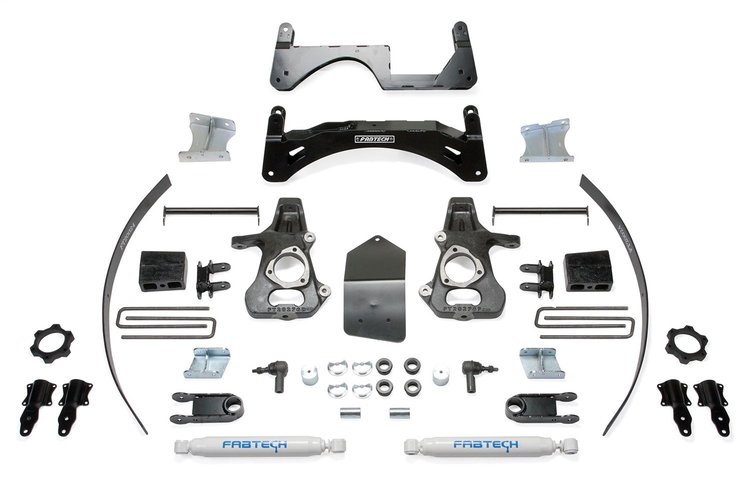

• Incl. Crossmembers And Support Tube/Sway Bar Frame Bracket~Differential Skid Plate And Bracket/Shock Extension And Mount To Arm~Shock Bracket/Rear Add-A-Leaf/Spindles/CV Spacer/5 in. Blocks/U-Bolts~Rear Bump Stop Spacers/Rear Shocks/All Required Hardware
• Will Not Fit AWD Models~Use 35/12.50R17 Tires w/17X8 Wheels w/5 in. BS; Minor Trim~Use 325/65R18 Tires w/18X9 Wheels w/5 in. BS; Minor Trim~Use 35/12.50R20 Tires w/20X9 Wheels w/5 in. BS; Minor Trim~Can Not Use OEM Wheel And Tire~Incl. Crossmembers And Support Tube/Sway Bar Frame Bracket~Differential Skid Plate And Bracket/Shock Extension And Mount To Arm~Shock Bracket/Rear Add-A-Leaf/Spindles/CV Spacer/5 in. Blocks/U-Bolts~Rear Bump Stop S pacers/Rear Shocks/All Required Hardware~Will Not Fit Vehicles With Auto Ride Shocks
