Fabtech Motorsports K2414DL Features:

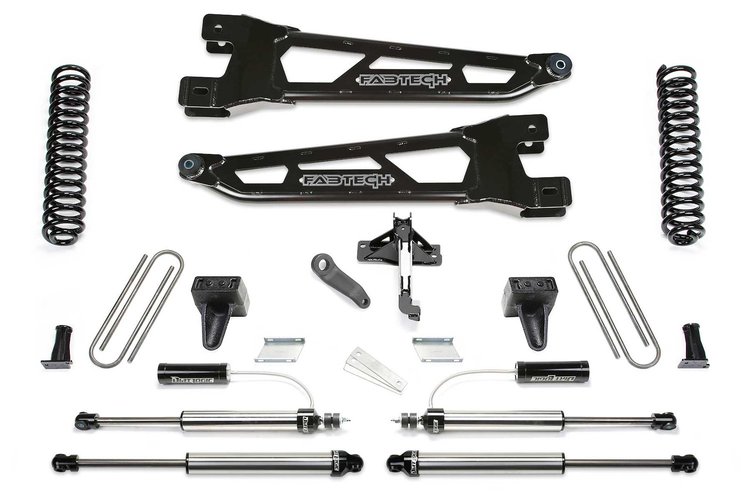

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift options includes 6 replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and a rear Block & U-bolt kit.

• Unsurpassed Strength And Performance
• Patent Pending Radius Arms
• Fully Tubular Structure
• Dimple Die Side Plates
• Adjustable Alignment Cam Allows Caster Adjustment
• 6 in. Lift; w/Coils; Incl. Front Dirt Logic Resi 2.25 Shocks And Rear Dirt Logic 2.25 Shocks
• Will Not Fit Gas Motors~Non Dually Models Only~Does Not Fit Vehicles Equipped With Ford Onboard Scale System~Tire Size - 38/12.50R17 Wheel - 17x9 w/4 3/4 in. BS w/Minor Trimming~Tire Size - 38/12.50R18 Wheel - 18x9 w/4 3/4 in. BS w/Minor Trimming~Tire Size - 38/12.50R20 Wheel - 20x9 w/5 in. BS w/Minor Trimming~Tire Size - 40/12.50R17 Wheel - 17x9 w/4 3/4 in. BS w/Cutting~Tire Size - 40/12.50R18 Wheel - 18x9 w/4 3/4 in. BS w/Cutting~Tire Size - 40/12.50R20 Wheel - 20x9 w/5 in. BS w/Cutting
• Will Not Fit Gas Motors~Non Dually Models Only~Does Not Fit Vehicles Equipped With Ford Onboard Scale System~Tire Size - 38/12.50R17 Wheel - 17x9 w/4 3/4 in. BS w/Minor Trimming~Tire Size - 38/12.50R18 Wheel - 18x9 w/4 3/4 in. BS w/Minor Trimming~Tire S ize - 38/12.50R20 Wheel - 20x9 w/5 in. BS w/Minor Trimming~Tire Size - 40/12.50R17 Wheel - 17x9 w/4 3/4 in. BS w/Cutting~Tire Size - 40/12.50R18 Wheel - 18x9 w/4 3/4 in. BS w/Cutting~Tire Size - 40/12.50R20 Wheel - 20x9 w/5 in. BS w/Cutting
