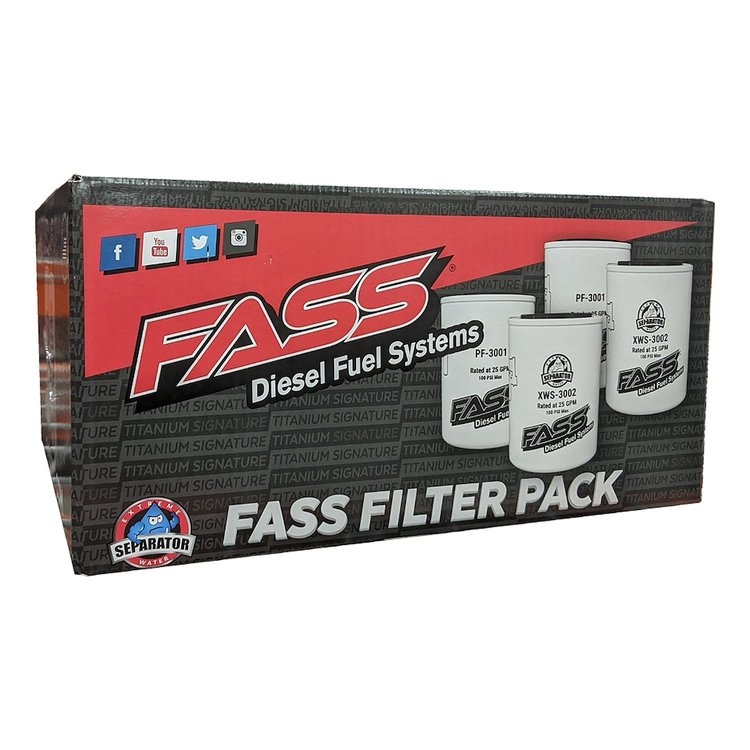

FASS Fuel Systems FP3000 Features:

Perfect for the shop or keeping your garage stocked, each FASS Fuel FP3000 contains two (2) (XWS3002) Extreme Water Separators and two (2) (PF3001) Particulate Filters! Designed with convenience in mind, FASS new FP3000s make it easy to maintain multiple FASS Fuel Systems!

The XWS3002, FASS new more efficient extreme water separator is rated at 2 micron absolute! Because the filter element traps over 99 percent of the water, a drain is no longer needed on FASS water separator. The new XWS3002 MUST be used in conjunction with the PF3001, the new filters cannot be used in combination with the FF-3003/FF-3010 or FS-1001/FS-1020.

When replacing the discontinued filters with the new XWS3002 and PF3001, the XWS3002 will now be placed on the pressure side of the System and the PF3001 will be placed on the suction side. FASS new Particulate Filter is rated at 144 microns.

The 144 micron Particulate Filter on the suction side will drastically reduce cavitation, increase flow properties, lower the sound output of the FASS System, and removes larger fuel particulates. Please see the location diagram on the new filters for proper placement.

Each FASS Fuel FP3000 contains:

• Two (2) (XWS3002) Extreme Water Separators
• Two (2) (PF3001) Particulate Filters
