Lowest Price Guarantee- XFI eDASH Unit
- Up to 20 Live Data Readings
- On-The-Fly Tune Changes
- Can Replace Tach, Speedometer and Other Gauges
On-The-Fly Tune Adjustments: - Adaptive Learn/self tuning on/off
- Pick up to (4) street or race tunes (XFI 2.0)
- Power adder (Ex. boost control, nitrous) on/off (XFI 2.0)
- Torque converter clutch lock-up MPH
- Rev limiter(s) RPMLive Data Readings/Sensors:
- IAC
- RPM
- TPS %
- A/F Ratio
- Coolant Temp
- Battery Voltage
- Target A/F Ratio
- Base Timing
- Air Temp
- Fuel PSI
- MAP
- MPH
- Total Timing
- Mile Per Gallon
- 02 Correction %
- Injector Duty Cycle
- Fuel Pump Duty Cycle
- Vacuum Advance
- TPS Voltage
- Idle Advance
- Lb.Hr.

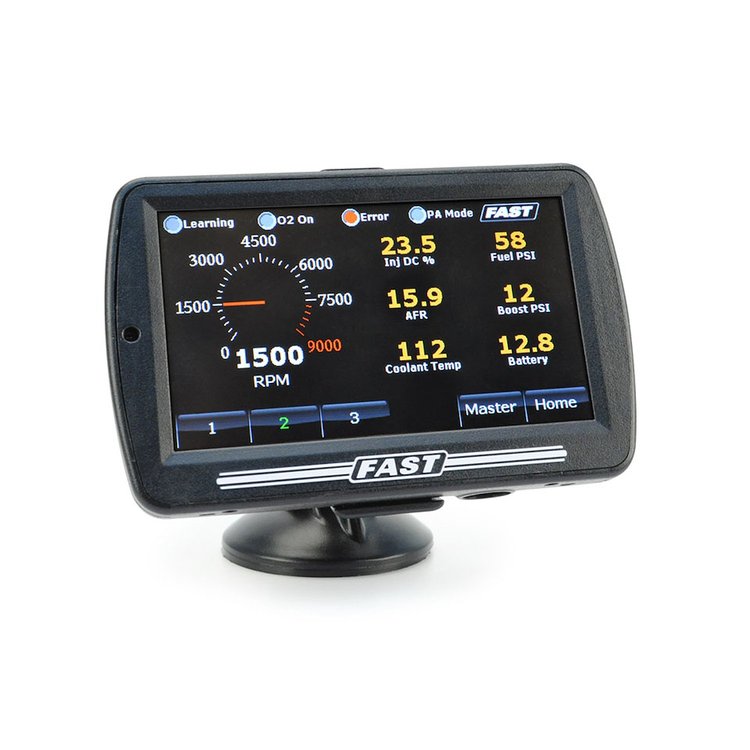

Developed to make harnessing the power of FAST XFI systems even easier, the XFI eDash lets users view multiple sensors in real-time and make popular adjustments without any software, laptops or switches. This direct plug-and-play unit is compatible with all FAST XFI 2.0 and XFI Sportsman units and offers an attractive, modern electronic digital dash that is small and compact, yet very readable. The full-color, touchscreen hand-held doesn’t require a laptop or software as the unit automatically senses the EFI system to which it is attached. The unit features multiple live data sensor screens, which include various electronic digital dashes highlighting combinations of commonly used sensors. Includes a suction cup and articulating quick-release mount, making dash or window mounting easy.
Show More
Features:
- Displays up to 20 different live sensor values at one time
- User can select start-up screen that will display each time unit restarts
- Unit logs both minimum and maximum sensor readings to allow easy recording of information
- Works with XFI 2.0 and XFI Sportsman
- Includes suction cup and articulating quick-release mount for easy window mounting
- *Note: FAST XFI 2.0 and XFI Sportsman Systems REQUIRE a laptop for initial tuning; XFI eDash is for use after initial tuning is complete
On-The-Fly Adjustment Options (with XFI 2.0):
- Pick From Up To 4 Street Or Race Tunes
- Power Adder (eg. Nitrous) On/Off
- Torque Converter Clutch Lock-up MPH (w/ EZ-TCU)
- Adaptive Learn Trim Adjustments
- Rev Limiter(s)
Live Data Readings:
- IAC
- RPM
- TPS Voltage, Percentage
- A/F Ratio, Target A/F Ratio
- Coolant Temp
- Battery Voltage
- Base Timing, Total Timing
- Air Temp
- Fuel PSI
- MAP
- MPH (requires XFI driveshaft sensor)
- MPG (requires XFI driveshaft sensor)
- O2 Correction
- Injector Duty Cycle
- Fuel Pump Duty Cycle
- Vacuum Advance
- Idle Advance
- Lb.Hr.
