EZ-EFI 2.0 Self-Tuning Fuel Injection Multi-Port Retro-Fit Kit

Name: EZ-EFI 2.0 Self-Tuning Fuel Injection Multi-Port Retro-Fit Kit
Brand: FAST
SKU: 244-30404-KIT
Price: 1589.95 USD
Availability: InStock

^$1,589⁹⁵

2 left in stock

Ships Today

Lowest Price Guarantee

Multi-Port Retro-Fit Kit

EZ-EFI 2.0 Self-Tuning Fuel Injection Multi-Port Retro-Fit Kit

For Distributor Ignition

FAST 30404-KIT EZ-EFI 2.0 Self-Tuning Fuel Injection Kit Features

FAST 30404-KIT EZ-EFI 2.0 Self-Tuning Fuel Injection Kit Features:

Multi-Port Retro-Fit Kit for existing factory or aftermarket multi-port fuel injected applications
No horsepower limit, based on customer-supplied injectors
Upgraded self-tuning EZ-EFI 2.0 with more features
Simple setup using the Setup Wizard on the color touchscreen hand-held
New high-quality wiring harness with mesh-type loom using late model OEM sensors
Updated hand-held with industry's first color touchscreen
Self-powered through the ECU, no external power source required
Mounting options with Garmin Nuvi GPS compatibility
Electronic fuel pressure measurement standard on all kits
Works with wet nitrous system, providing nitrous timing retard and AFR targeting
EZ-Ignition™ for plug-and-play timing control or use with EFI distributor and FAST™ Crank Trigger
No laptop or tuning experience required; self-tunes as you drive
Touchscreen hand-held doubles as a sensor dash with suction-cup mount
Works with carb-type distributor or FAST™ Dual-Sync Distributor for plug-and-play timing control
ECU includes on-board LED diagnostics & EZ-Test™ indicator lights

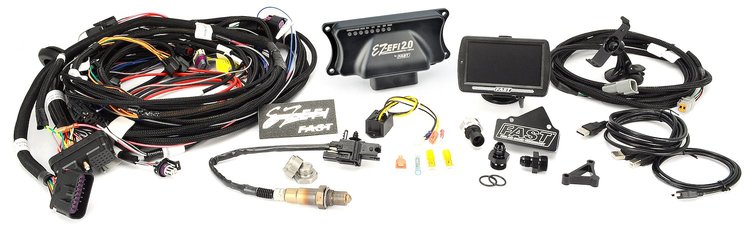

Retro-Fit Kit Includes:

EZ-EFI 2.0 ECU with wide-band O2 sensor
Clearly labeled retro-fit wiring harness with mesh loom
Fuel pressure sensor & mounting block/adaptor
Touchscreen hand-held with mount

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

FAST's EZ-EFI 2.0 Self-Tuning Fuel Injection Systems have been upgraded with even more features yet still remains easy to use. A laptop or tuning experience is still not required as the system simply tunes itself as you drive. An 8-injector die-cast throttle body handles up to 1200 horsepower, uses late-model OE sensors for reliability, has ignition timing control and can run ethanol-blend E85, E98, or E15 fuel. The throttle body flows more air than the first generation EZ-EFI due to an improved inlet, and the new secondary shaft throttle stop adjustment provides even more precise regulation/balance of idle airflow.

Unique to FAST, an integrated fuel pulse damper creates ultra-accurate fuel control. The EZ-EFI 2.0 also incorporates needle-bearing supported shafts instead of bushings and an integrated fuel rail design with crossover for tighter packaging. Setup includes the market’s fewest connection wires, including a high quality wiring harness that is encased in a sleek mesh-type loom.

The EZ-EFI 2.0 has an updated hand-held as well, featuring the industry’s first color touchscreen. Self-powered through the ECU rather than requiring an outside power source, it shares the same mounting points as the Garmin Nuvi GPS, meaning there are nearly limitless mounting options. Serving as the Setup Wizard initially, it then becomes an electronic gauge screen. The hand-held has various advanced features including screen hide/sleep function, expanded diagnostics and data screens, plus intuitive navigation.

Features:

Higher flowing and higher HP-capable throttle body for engines making up to 1200 HP
Maintains ease-of-use that doesn’t require a laptop or previous tuning experience
Able to run E85 fuels as opposed to competitor versions
Fuel pulse damper creates precise fuel control
Sleek wiring harness and mesh-type loom
Hand-held features a color touchscreen
and shares the same mounting points as Garmin Nuvi GPS for almost limitless mounting options
ECU includes LED diagnostic feature with on-board diagnostics and EZ-Test Indicator Lights
Works with both EZ-EFI or Inglese throttle bodies and multi-port systems
Compatible with multiple fuel pump options
EZ-Solution option to allow integration with most common ingition systems

Part TypeFuel Injection System

Product LineFAST EZ-EFI 2.0 Self-Tuning Fuel Injection Systems

BrandFAST

Package Height4.7

Package Width14.9

Package Length15.1

Weight8.96 PG

Part CategoryPerformance Parts

Wiring Harness IncludedYes

Iat Sensor IncludedNo

Fuel Pump IncludedNo

Engine Block StyleStock/OEM standard deck
