Made in USA
E6 Digital CD Ignition Box with E92 Coil
Product Discontinued
FASTPART NUMBER: 244-306401

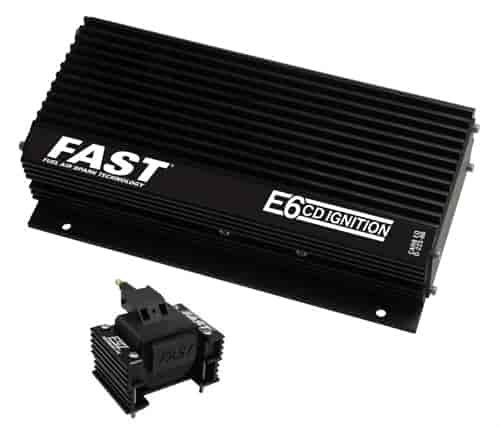

E6 Digital CD Ignition Box with E92 Coil

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ignition Box
    E6 Digital CD Ignition Box
  • 4/6/8-Cylinder Applications with Distributor
  • Includes E92 E-Core Ignition Coil
  • 6-18V
  • 1200 mJ

    FAST's E6 Digital CD Ignition Boxes will fire up your engine with high voltage, full power sparks from cranking to redline RPM. FAST understands the goals and needs of a reliable, high energy spark and now offers an ignition designed for nearly any 4, 6, and 8-cylinder distributor triggered engine, both carbureted or fuel injected. The E6 Digital CD Box is ideal for street rods, muscle cars and daily drivers. The ignition produces a series of sparks at lower RPM resulting in quick starts, smooths out the idle and helps with throttle transitions. This series of multi strikes burns in the cylinder for 20° of crankshaft rotation through 3,000 RPM. Higher RPM receives a full voltage spark that will improve the mid-range and higher RPM pull. The E6 will easily connect to breaker points, amplifiers and to the line of FAST XDi Sportsman and Pro Race Distributors. It will also connect to the output of any FAST EFI System. Each unit is built with modern surface-mount technology and then is secured and sealed in a sturdy, easy-to-mount housing.

Part TypeIgnition Kit
Product LineFAST E6 Digital CD Ignition Boxes
BrandFAST
Package Height2 in (50.8 mm)
Package Width4.5 in (114.3 mm)
Package Length11.9
Weight6.3 PG
Part CategoryPerformance Parts
Current Draw5 amps at 7,000 rpm
Coil StyleE-core
Rev LimiterNo
QuantitySold as a kit
Overall Length8 in (203.2 mm)
Spark Output (Millijoules)1,200 Millijoules
CircuitryDigital
Coil ShapeSquare
Coil IncludedYes
Minimum Operating Voltage6 V
Mounting Bracket IncludedYes
Coil ColorBlack/Red
Coil Wire IncludedNo
Ignition Box OutputCapacitive discharge
Cd Voltage Output To Coil450 V
Coil Internal ConstructionEpoxy
Timing RetardNone
Ignition Box ColorRed
Maximum Operating Voltage18 V
Vendor Part Number306401
Package Qty1
Package TypeEA
