Vehicle Info Needed

FASTPART NUMBER: 244-307501

Inline Race Fuel System 1900 HP

Name: Inline Race Fuel System 1900 HP
Brand: FAST
SKU: 244-307501
Price: 1795.95 USD
Availability: InStock

^$1,795⁹⁵

Ships on 09/04/2026

Lowest Price Guarantee

Inline Race Fuel System

Supports 1900 HP Naturally Aspirated

Supports 1400 HP Forced Induction

1000 lb./hr. Pump @ 45psi

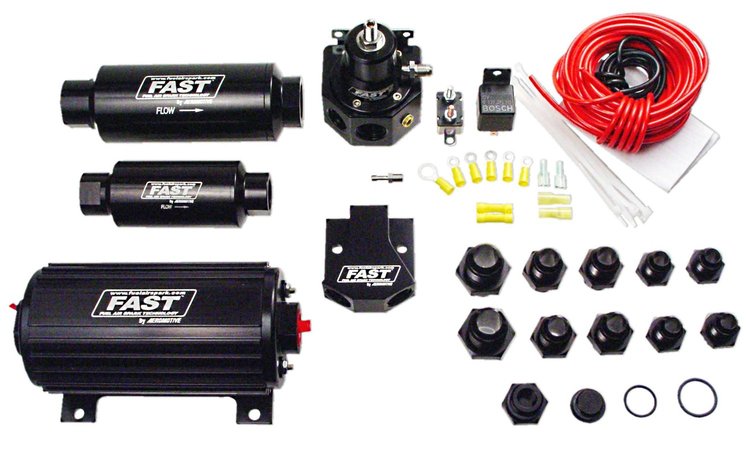

Includes:

30 Amp Relay
Circuit Breaker, 10 Gauge Wire
Terminal Connectors
1000 lb./hr. Pump @ 45 psi/13 volts
3 Port EFI Pro Series Regulator - (3) -8AN & (1) -10AN Ins & (1) -10AN Out
100 Micron Pre-Filter
10 Micron Post-Filter
Y-Block - -10AN Ins, -8AN Outs
(4) -8AN Fittings & O-Rings
(4) -10AN Fittings & O-Rings
(2) -12AN Fittings & O-Rings

Part TypeElectric Fluid Pump

BrandFAST

Package Height4.75

Package Width11.5

Package Length14.5

Weight14.72 PG

Part CategoryPerformance Parts

Fuel Pump IncludedYes

Fuel Pressure Regulator IncludedYes

QuantitySold as a kit

Boost/Vacuum Reference PortYes

Maximum Fuel Pressure (Psi)90

Fittings IncludedYes

Clamps IncludedYes

Fuel Line IncludedNo

Pressure Range (Psi)30-70

Part FitmentUniversal

Fuel Filter IncludedYES

Free Flow Rate600 lbs./hr.

Vendor Part Number307501

Package Qty1

Package TypeEA
