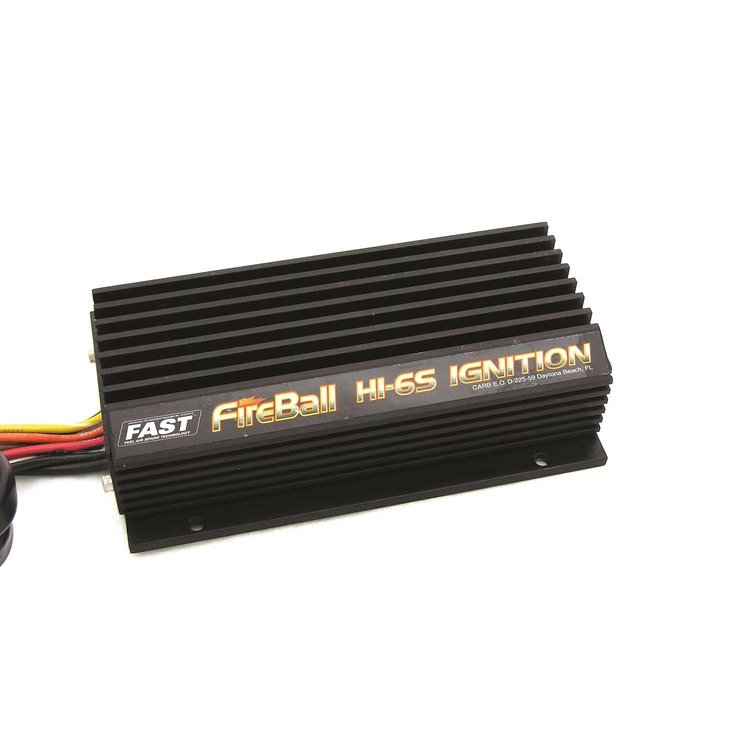

HI-6S Multi-Spark Ignition System with LX91 Coil Universal 4/6/8-Cylinder Applications
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- HI-6S Multi-Spark Ignition System
- Includes LX91 Coil
- Universal 4/6/8-Cylinder Applications
- CARB E.O. D-225-59
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
FAST's HI-6S Multi-Spark Ignition is manufactured with a powerful inductive design for street and race performance. It has a Plug-n-Go installation for 4/6/8-cylinder applications. The HI-6S delivers up to 70% more spark-gap energy than stock ignitions and is suitable for up to 9.5:1 compression ratios with a max output up to 8,000 RPM. A new soft urethane encapsulation ensures a tight seal against moisture, dirt, dust, vibration, and heat. It can be triggered by points or module distributors and has a built-in rev limiter that's adjustable in 100 RPM increments from 3,100-9,900 RPM.
Show More
Features:
- Inductive ignition with long duration spark
- Boost retard or 20° selectable nitrous retard
- Rev limiter adjusted in 100 RPM increments
- 70% more spark-gap energy
- 50-State Legal CARB EO #225-59
Specifications:
- Operating Voltage: 6 to 18 Volts, Reverse Polarity protected, negative ground only
- Current Draw: 5.0 Amps max @ 7,000 RPM
- RPM Operating Range: 8,000 RPM (Can be extended to 10,000 RPM on 4 cyl. engine)
- RPM Limiter Range: 3,100 to 9,900 RPM when digital stage rev limiter mode is selected
- Multiple Spark Duration: 20° crank rotation below 2,000 RPM, Max 12 sparks per sequence
- Primary Voltage Output: 450 Volts
- Spark Duration: 2,800 microseconds at 2,000 RPM
- Trigger Input: Module Trigger (12v square wave)
- Dimensions: 5-1/2'' x 3'' x 1-1/2'', 2-3/8 lbs
