Vehicle Info NeededFASTPART NUMBER: 244-700-0001

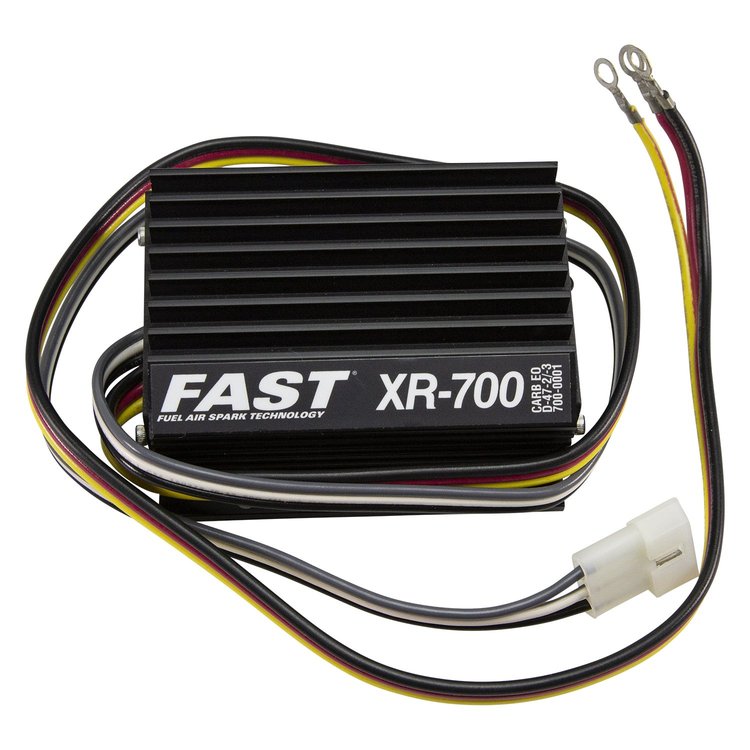

Replacement XR700 Power Module
$9695
Ships on 09/11/2026
Lowest Price GuaranteeReplacement Module
- Replacement XR700 Power Module
- Each
XR700; Ignition Module; For 12 Volt Negative Or Positive Ground;
FAST's XR700 Points-To-Electronic Ignition Systems converts points-style ditributors to electronic ignition, delivering a more powerful signal. The XR700 offers more accurate and precise timing, with operating range up to 18 volts. This system delivers more reliability than any other of its kind for your street/strip vehicle.
Features:
- Converts points-type distributors to electronic ignition
- Increased timing accuracy
- Replaces many Bosch, Lucas, Hitachi and ND units
- Status LED light for easy diagnostics
Show More
- Fully potted for protection from dirt, moisture and vibration
- Optical trigger for precise ignition timing
- More powerful signal
- Short circuit proof
- Positive ground compatible
- 50 State Legal
Specifications:
- Operating Voltage: 6 to 18 volts, reverse polarity protected, negative or positive ground
- Coil Current Limit: 4.5 amps (limited by ballast resistor on XR700), Internal short circuit protection limit set at 7 amps
- RPM Range: 6,000 RPM (RPM range higher for 4 and 6-cylinder engines)
- Primary Voltage Output: 400 volts (inductive discharge)
- Primary Energy Output: 60 millijoules with PS20/40 coil
- Peak Spark Gap: 60 milliamps with PS20/40 coil
- Spark Duration: 300 microseconds at 6,000 RPM
- Dimensions: 3-1/2''L x 3''W x 1-1/2''H, 1 lb.
Part TypeIgnition Control Module
Product LineFAST XR700 Points-To-Electronic Ignition Systems
BrandFAST
Package Height3.6
Package Width8.6
Package Length9.8
Weight1.4 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number700-0001
Package Qty1
Package TypeEA
