This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

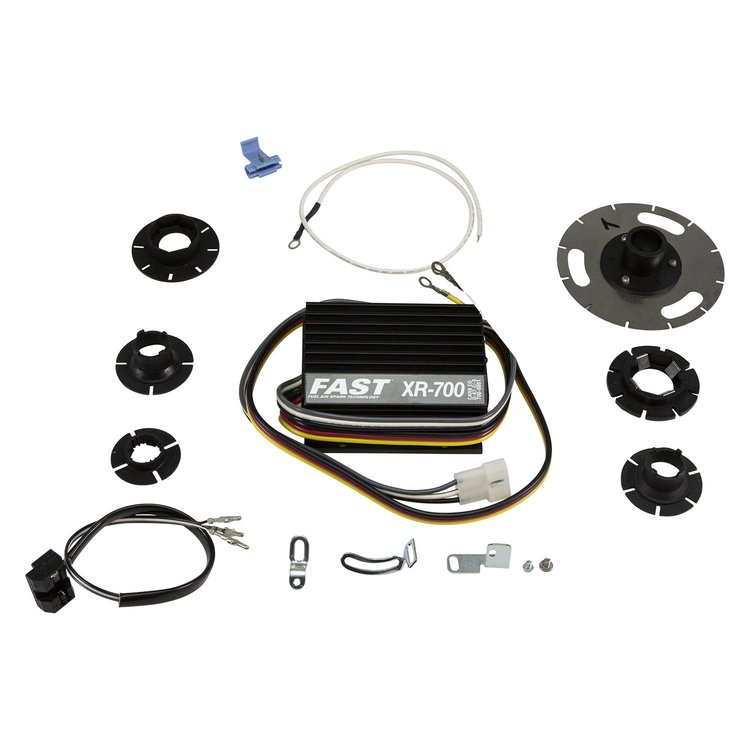

- XR700 Points-To-Electronic Ignition System
- 1979-83 British Imports 4/6-Cylinder Applications
- Equipped with Lucas OPUS Distributor
- CARB E.O. D-47-3
Note: For applications where the OPUS module has failed and must be eliminated. OPUS system has three wires on OE pickup. If pickup has two wires, you have a conventional magnetic pickup distributor and cannot install an optical trigger. You must use an HI-6R (271-6000-6400) connected directly to the magnetic pickup in the Lucas distributor.
FAST's XR700 Points-To-Electronic Ignition Systems converts points-style ditributors to electronic ignition, delivering a more powerful signal. The XR700 offers more accurate and precise timing, with operating range up to 18 volts. This system delivers more reliability than any other of its kind for your street/strip vehicle.
Features:
- Converts points-type distributors to electronic ignition
- Increased timing accuracy
- Replaces many Bosch, Lucas, Hitachi and ND units
- Status LED light for easy diagnostics
Show More
- Fully potted for protection from dirt, moisture and vibration
- Optical trigger for precise ignition timing
- More powerful signal
- Short circuit proof
- Positive ground compatible
- 50 State Legal
Specifications:
- Operating Voltage: 6 to 18 volts, reverse polarity protected, negative or positive ground
- Coil Current Limit: 4.5 amps (limited by ballast resistor on XR700), Internal short circuit protection limit set at 7 amps
- RPM Range: 6,000 RPM (RPM range higher for 4 and 6-cylinder engines)
- Primary Voltage Output: 400 volts (inductive discharge)
- Primary Energy Output: 60 millijoules with PS20/40 coil
- Peak Spark Gap: 60 milliamps with PS20/40 coil
- Spark Duration: 300 microseconds at 6,000 RPM
- Dimensions: 3-1/2''L x 3''W x 1-1/2''H, 1 lb.
