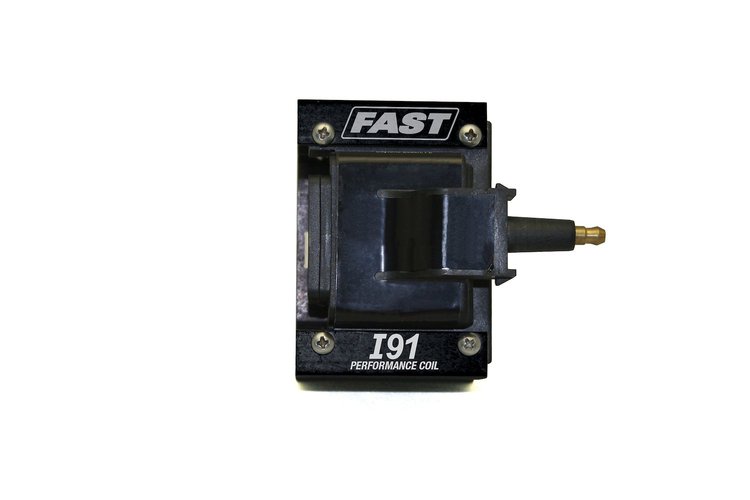

The I91 Coil is designed for use with FAST high output inductive ignition systems such as the I6 Ignition Control or the XR-3000 Electronic Conversion Systems. The internal design is optimized to produce a long duration spark coupled with higher voltage output making it ideal for street and performance applications.

I91 Coil Specs:

• Primary Resistance: .40 ohms
• Secondary Resistance: 4.6 Kohms
• Primary Inductance: 4.7 mH
• Secondary Inductance: 14.4 H
• Leakage Inductance: .23 mH
• Turns Ratio: 57:1
• Dimensions: 3-3/4" L x 2-1/2" W x 3" H, 1-1/4 lbs.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
