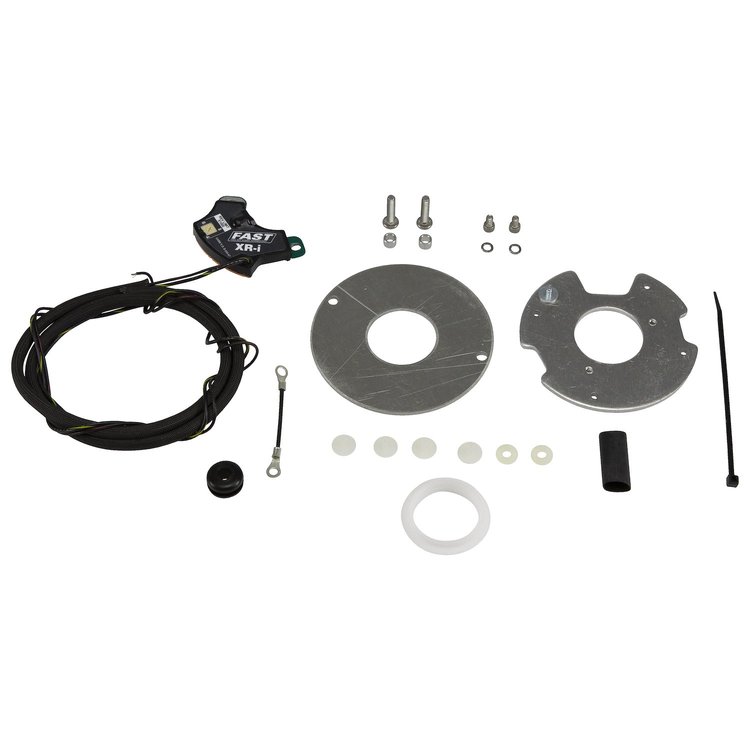

Points Replacement Ignition Module for Ford V8 [1959-1974]
The XR-i module replaces breaker points with an electronic trigger that reads the factory cam lobe, giving a 1959-1974 Ford V8 a maintenance-free timing signal with no periodic points adjustment.
XR-i Points Replacement Details:
- Triggers directly from the factory distributor cam lobe
- Eliminates points bounce and the need for periodic gap adjustment
- Fits Ford V8 engines built from 1959 to 1974
- Carries CARB EO D-225-67
Emissions Note:
This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturer's application guide because it has a California Air Resources Board (CARB) Executive Order (EO) # D-225-67
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
FAST's XR-i Points to Electronic Ignition converts points-style ignition systems to an electronic ignition. The XR-i is a compact module that bolts directly in place of the breaker point assembly. It simply triggers from the factory cam lobe, making installation a breeze with only two wires to connect. The microcontroller of the module manages the signal and dwell time in the coil to produce a much higher output spark that will improve the performance and driveability. Also features a built-in rev limiter to protect your engine in the event of driveline failure or a missed shift. Units are urethane-sealed to guard against dirt, oil, moisture, and vibration and digital to work optimally at all RPM and temperatures with over-temp protection for safe use in distributors.
Show More
Features:
- Easy 2-Wire Hook-up
- Improved Fuel Mileage
- Faster, More Reliable Engine Starts
- Industry's 1st and Only With Rev Limiter (4000-8000 RPM)
- Fully Digital and Maintenance-Free
- Timing Picked Up from Distributor Cam Lobe
- Pinpoint Accurate Ignition Timing
- Complete Under Cap - Restoration Perfect
- Fully Sealed from Moisture and Dirt
- High-Temperature Protection
- CARB E.O. #D-225-67 (50-State Legal)
Specs:
- Operating Voltage: 6V-18V, Reverse Polarity Protected, Negative Ground Only
- Current Draw: 3.0 Amps Max. at 5,500 RPM
- Operating Range: 8,000 RPM
- Limiter Range: 4,000-8,000 RPM
- Primary Voltage Output: 400V (Inductive Discharge)
- Primary Energy Output: 45mJ w/ PS20 Coil and 1.65L Ballast Resistor
- Peak Spark Gap Current: 50 Milliamps with PS20 Coil and 1.65L Ballast Resistor
- Spark Duration: 2100 Microseconds @ 2,000 RPM
