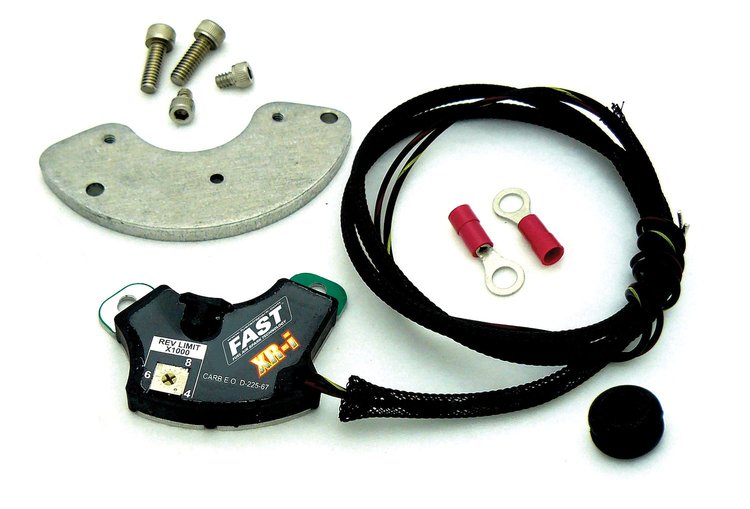

XR-i Points to Electronic Conversion
• 1957-74 Chevy V8
• OE Single Points Distributors Only


  Specifications:
• Operating Voltage: 6-18V Reverse Polarity Protection, Negative Ground
• Current Draw: 3 Amps Max @ 5,500 RPM
• RPM Operating Range: 8,000 RPM
• RPM Limiter Range: 4,000-8,000 RPM
• Primary Voltage Output: 400 V (Inductive Discharge)
• Primary Energy Output: 45 Millijoules with PS20 Coil and 1.65L Ballast Resistor
• Peak Spark Gap Current: 50 Milliamps with PS20 Coil and 1.65L Ballast Resistor
• Spark Duration: 2100 Microseconds @ 2,000 RPM

Emissions Note:

This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturer's application guide because it has a California Air Resources Board (CARB) Executive Order (EO) # D-225-67
