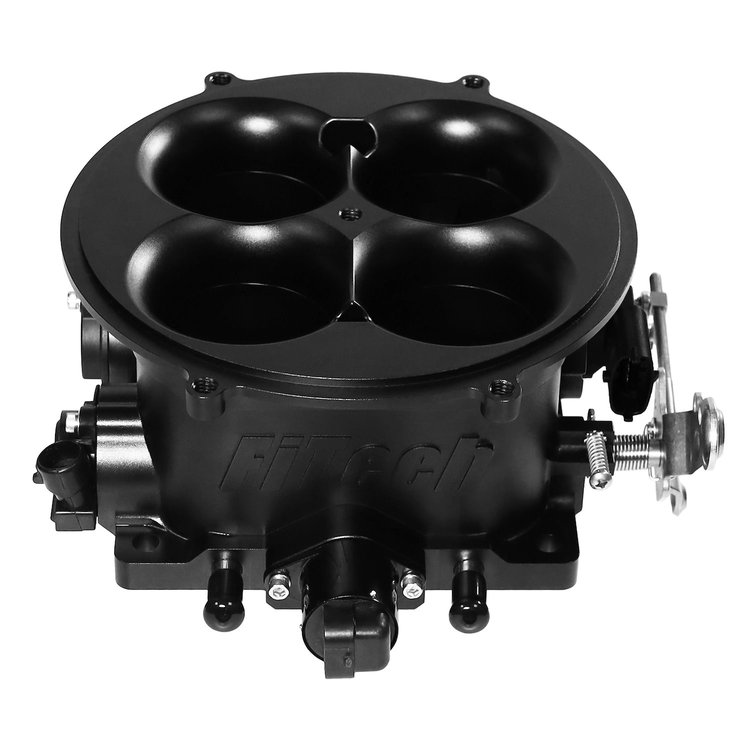

30038 NEMESIS Universal 4500 Throttle Body, TMAP [Black Finish]
InfoVehicle Info Needed
FITECH FUEL INJECTIONPART NUMBER: 546-30038

30038 NEMESIS Universal 4500 Throttle Body, TMAP [Black Finish]

$99900
ShippingShips on 09/21/2026
Lowest PriceLowest Price Guarantee

Black
NEMESIS Universal 4500 Throttle Body
  • TMAP Sensor
  • Black Finish

    FiTech 30038 Features:

    The Nemesis Universal 4500 Throttle Body in black finish with TMAP sensor capability is engineered for high-output builds where temperature and pressure monitoring must work together for maximum precision. Ideal for racers pushing the limits with boost, nitrous, or massive naturally aspirated power, this throttle body is built to flow over 2400 CFM while providing the exact data your EFI system needs.

    • Stealthy black finish with race-ready construction
    • 4500 bolt pattern fits directly on race and high-rise manifolds
    • TMAP sensor compatibility for combined temperature/pressure monitoring
    • Threaded IAT port included for boosted applications
    • Over 2400 CFM airflow for huge horsepower potential
    • IAC motor included for reliable idle control
    • 1:1 throttle linkage for responsive acceleration
    • Adjustable vacuum/boost reference ports for custom tuning

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • Part TypeFuel Injection System
    BrandFITECH FUEL INJECTION
    Package Height7.0
    Package Width12.0
    Package Length14.0
    Weight10.0 PG
    Part CategoryPerformance Parts
    Throttle Body FinishBlack
    Throttle Body Mounting Flange4500
    User-TuneableYes
    Forced Induction SupportYes
    Injection StyleThrottle Body
    Idle Air Control Motor IncludedYes
    Part FitmentUniversal
    Throttle Body MaterialAluminum
    Throttle Body Air Flow Rate2400 cfm
    Vendor Part Number30038
    Package Qty1
    Package TypeEA
