Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
20 Gallon

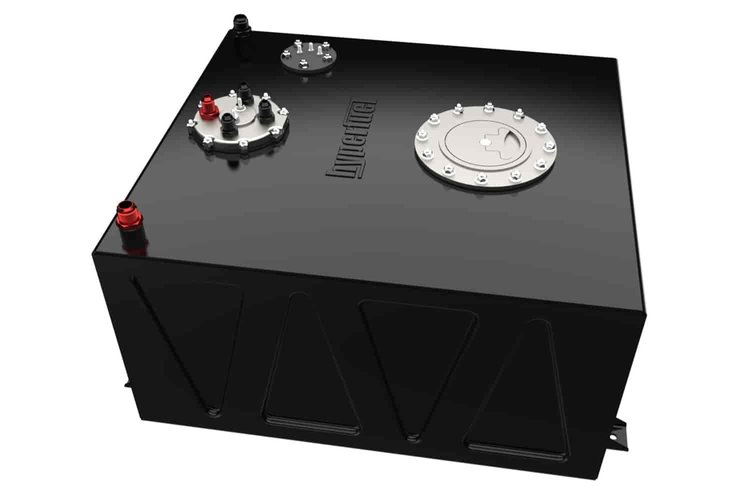

- Hyperfuel Fuel Cell
- 20 Gallon Capacity
- 340 L/PH Single Pump
- 0-90 ohm Sending Unit
- Anodized Black
- Supports up to 800 HP
Hyperfuel's Fuel Cells are available in 6, 15 and 20-gallon sizes with a choice of a single or dual 340 L/PH high-quality fuel pump to support most power levels and engine combinations. These fuel cells feature welded thick aluminum and with the in-tank fuel pump, virtually eliminating hot fuel handling issues. All Hyperfuel fuel cells feature a 0-90 Ohm fuel level sender and all fuel cells include (1) AN-08 return line provision and (1) AN -08 rollover vent.
Show More
Features:
- 3.5mm Thick Aluminum Cell, Die-Stamped for Extra Strength
- Anodized Black Finish
- (1) Valve Rollover Event
- (1) AN -08 Male Return Port
- Baffled Pick-Up Area
- 340 L/PH High-Quality Fuel Pump
- Available in 6, 15, 20 Gallon Sizes
- Features a 0-90 ohm (GM) Sending Unit
Dimensions:
- 6 Gallon - 12.00"L x 12.00"W x 10.24"H
- 15 Gallon - 20.08"L x 17.87"W x 10.24"H
- 20 Gallon - 24.41"L x 19.84"W x 10.24"H
Part TypeFuel Cell
Product LineHyperfuel Fuel Cells
BrandFITECH FUEL INJECTION
Package Height13.0
Package Width21.0
Package Length26.5
Weight24.92 PG
Part CategoryPerformance Parts
Vendor Part Number49120
Package Qty1
Package TypeEA
No Questions
No Reviews
Items You Need
Some parts are not legal for use in California or other states with similar laws / regulations
