54002 Go-Fuel Dual Output Pressure Regulator

Vehicle Info Needed

FITECH FUEL INJECTIONPART NUMBER: 546-54002

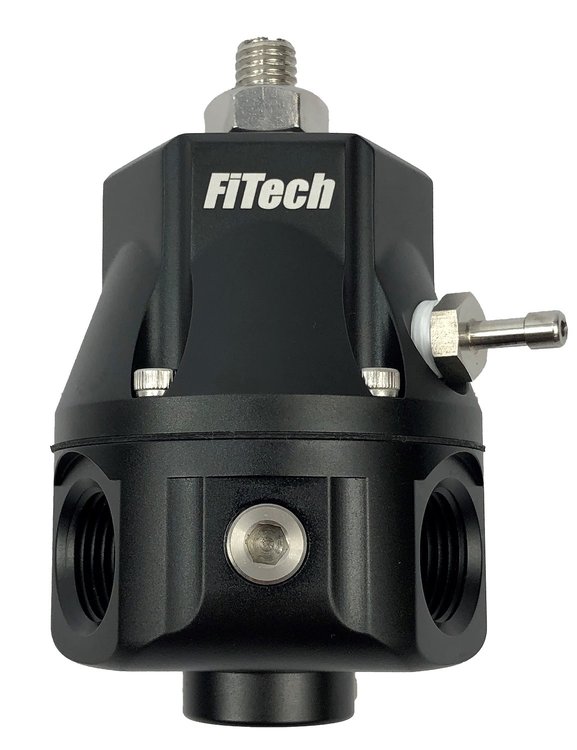

54002 Go-Fuel Dual Output Pressure Regulator

Name: 54002 Go-Fuel Dual Output Pressure Regulator
Brand: FITECH FUEL INJECTION
SKU: 546-54002
Price: 171.00 USD
Availability: InStock

^$171⁰⁰

Ships on Sep 04, 2026

Lowest Price Guarantee

Dual Output Pressure Regulator

Go-Fuel Dual Output Pressure Regulator

-6 ORB Ports

(1) Vacuum Port

30-70 PSI Adjustment

Billet Aluminum

Supports up to 1,600 HP

Includes a Liquid-Filled Pressure Gauge, -6 and -8 AN Fittings, (2) Plugs and a Mounting Bracket

Breakdown of Included Items

FiTech 54002 Go-Fuel Dual Output Pressure Regulator Features:

Dual outlet
-6 ORB ports
(1) Vacuum port for boost reference
Can be adjusted from 30-70 PSI
Constructed from billet aluminum
Supports up to 1,600 HP
A Viton diaphragm allows for use with all types of fuel including E85

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeFuel Pressure Regulator

BrandFITECH FUEL INJECTION

Package Height3.3

Package Width3.4

Package Length4.0

Weight1.23 PG

Part CategoryPerformance Parts

Regulator FinishBlack

Outlet Size-6 AN

Inlet Size-6 AN

Regulator MaterialBillet aluminum

Outlet Quantity2

QuantitySold individually

Boost/Vacuum Reference PortYes

Inlet AttachmentAN

AdjustableYes

Fuel TypeGasoline/E85 Compatible

Mounting Bracket IncludedYes

Gauge PortYes

Outlet AttachmentFemale Threads

Fittings IncludedYes

Inlet Quantity1

Pressure Range (Psi)30-70

Part FitmentUniversal

Regulator StyleExternal

Vendor Part Number54002

Package Qty1

Package TypeEA
