Vehicle Info NeededFLAMING RIVERPART NUMBER: 898-FR1502-3X3

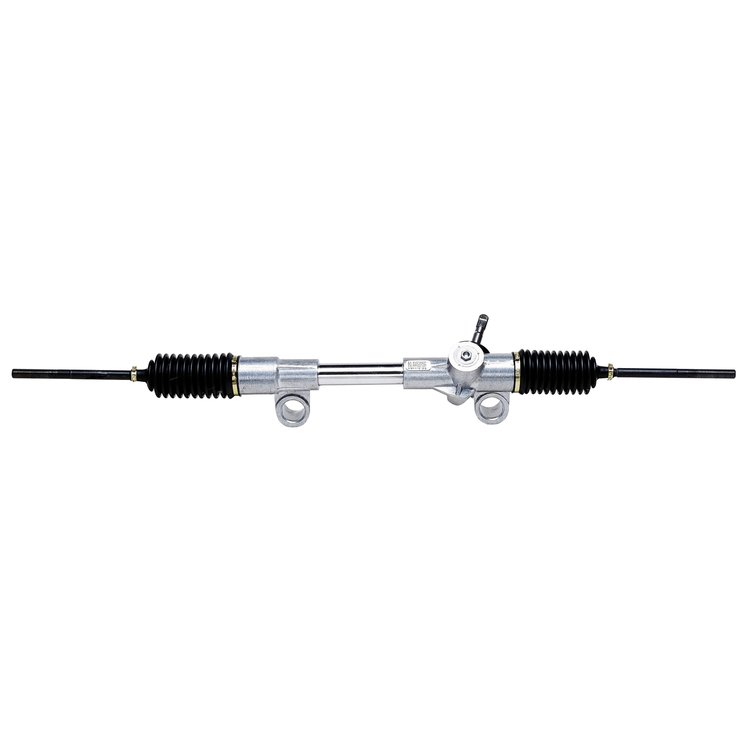

Narrowed Manual Rack & Pinion 1974-1978 Ford Mustang II
$82468
Ships on 11/16/2026
Lowest Price GuaranteeMustang II Manual Rack & Pinions
Narrowed Manual Rack & Pinion1974-1978 Ford Mustang II With Short Pinion 15 lbs Weight 42" Overall Length 5.34" Rack Travel 3.92 Turns Lock-to-Lock
FR1501-3X3 Specifications
- OEM Design Style:74-78 Ford Mustang
- Steering Design:Front Steer
- Total Weight:15 lbs.
- Housing Material:Die Cast Aluminum
- Tube Material:Carbon Steel
- Tube Plating:Chrome
- Rack Gain:1.36" per turn
- No. Turns Lock-to-Lock:3.92
- Total Rack Travel:5.34"
- Overall Length (end to end):42"
- Housing Length:17.875"
- Housing O.D.:2.1" (both ends)
- Input Shaft Angle:72°
- Input Shaft Spline Size:9/16"-26
- Input Shaft Length:1.5"
- Pivot Points:21.5"
- Inner End Diameter:14mm (.551")
- Inner End Thread Size:9/16"-18
- Driver Side Mount:Spike (bushing req'd)
- Passenger Side Mount:Spike (bushing req'd)
- Spike Mount Center to Center Distance:13"
- Bellows Material:Nitrille Rubber
These direct replacement lightweight rack and pinions are ideal for drag race or pro street applications. Flaming River racks are all completely new units, designed with the highest quality castings and components. Manual steering racks are responsive, stronger, and lighter than OEM racks and come in a variety of ratios, lengths, and pivot points.
Show More
Features:
- Ideal for Drag Race or Street Applications
- Completely New "Not Rebuilt"
- More Responsive, Stronger & Lighter
Part TypeRack and Pinion Complete Unit
Product LineFlaming River Manual Rack & Pinions
BrandFLAMING RIVER
Package Height6.0
Package Width10.1
Package Length41.0
Weight12.1 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberFR1502-3X3
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
