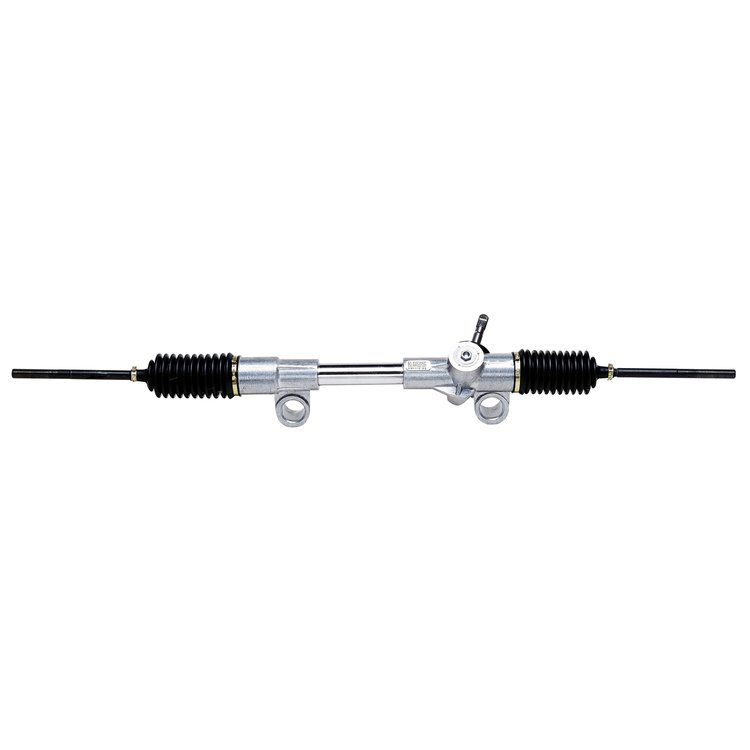

Mustang II Manual Rack & Pinions
Manual Rack & Pinion1974-1978 Ford Mustang II With Short Pinion 14 lbs Weight 45" Overall Length 5.34" Rack Travel 3.92 Turns Lock-to-Lock Chrome Finish
FR1501-5C Specifications
- OEM Design Style:74-78 Ford Mustang
- Steering Design:Front Steer
- Total Weight:14 lbs.
- Housing Material:Die Cast Aluminum
- Tube Material:Carbon Steel
- Tube Plating:Chrome
- Rack Gain:1.36" per turn
- No. Turns Lock-to-Lock:3.92
- Total Rack Travel:5.34"
- Overall Length (end to end):45"
- Housing Length:20-7/8"
- Housing O.D.:2.1" (both ends)
- Input Shaft Angle:72°
- Input Shaft Spline Size:9/16"-26
- Input Shaft Length:1.5"
- Pivot Points:24.5"
- Inner End Diameter:14mm (.551")
- Inner End Thread Size:9/16"-18
- Driver Side Mount:Spike (bushing req'd)
- Passenger Side Mount:Spike (bushing req'd)
- Spike Mount Center to Center Distance:16"
- Bellows Material:Nitrille Rubber
Part TypeRack and Pinion Complete Unit
BrandFLAMING RIVER
Package Height9.0
Package Width9.0
Package Length48.0
Weight9.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberFR1502-5C
Package Qty1
Package TypeEA
