Vehicle Info NeededFLAMING RIVERPART NUMBER: 898-FR1508

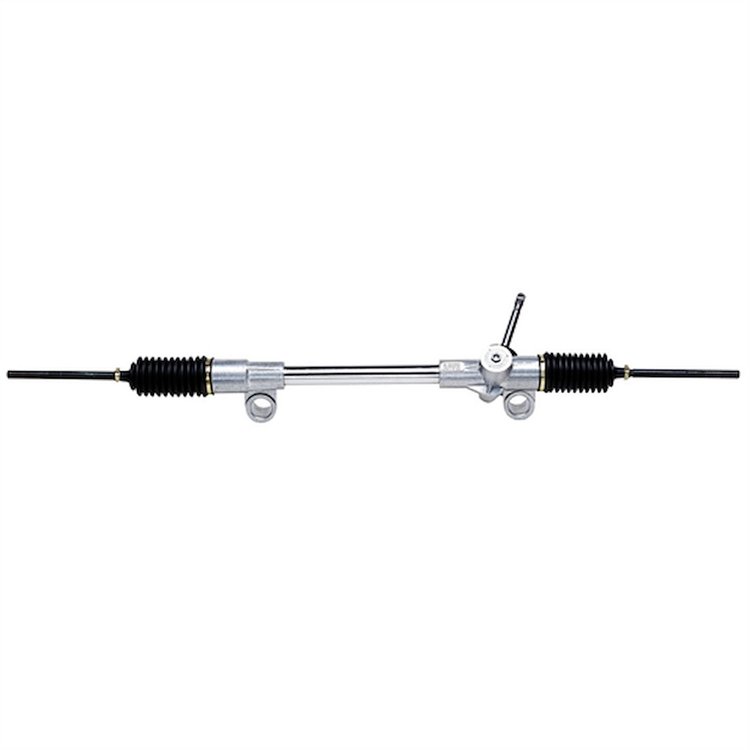

Manual Rack & Pinion 1994-2004 Ford Mustang Non-Modular Engines
$55900
Ships on 09/15/2026
Lowest Price GuaranteeMustang Manual Rack & Pinions
Manual Rack & Pinion1994-2004 Ford Mustang Non-Modular Engines 20:1 Standard Ratio Front Steer 12 lbs Weight 48.5" Overall Length 5.5" Rack Travel 4.00 Turns Lock-to-Lock
FR1508 Specifications
- OEM Design Style: 94-04 Ford Mustang
- Steering Design: Front Steer
- Total Weight: 12 lbs.
- Housing Material: Die Cast Aluminum
- Tube Material: Carbon Steel
- Tube Plating: Chrome
- Rack Gain: 1.44" per turn
- No. Turns Lock-to-Lock: 4.00
- Total Rack Travel: 5.5"
- Overall Length (end to end): 48.5"
- Housing Length: 20-3/8"
- Housing O.D.: 2.1" (both ends)
- Input Shaft Angle: 72°
- Input Shaft Spline Size: 9/16"-26
- Input Shaft Length: 4.625"
- Pivot Points: 24.5"
- Inner End Diameter: .590"
- Inner End Thread Size: 9/16"-18
- Driver Side Mount: Spike (bushing req'd)
- Passenger Side Mount: Spike (bushing req'd)
- Spike Mount Center to Center Distance: 15.5"
- Bellows Material: Nitrille Rubber
Part TypeRack and Pinion Complete Unit
BrandFLAMING RIVER
Package Height9.0
Package Width9.0
Package Length48.0
Weight15.5 PG
Part CategoryPerformance Parts
Part FitmentDirect Fit
Vendor Part NumberFR1508
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
