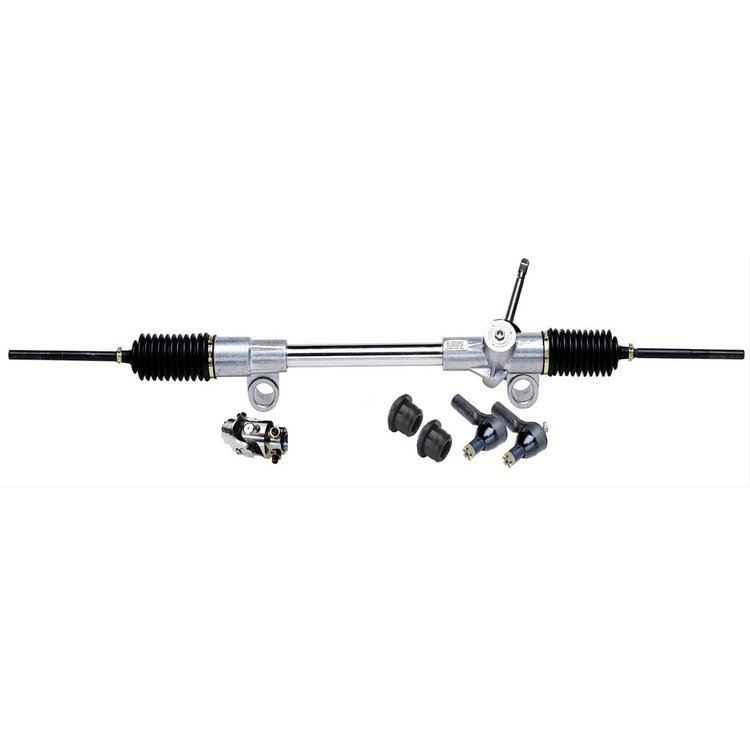

Kit includes:

• FR1520 Quick Ratio Manual Rack and Pinion
• (1) 9/16"-26 X 3/4" Smooth Forged Universal Joint
• (2) Outer Tie Rod Ends
• (2) Mounting Bushings

FR1520 Specifications

• OEM Design Style:  79-93 Ford Mustang
• Steering Design:  Front Steer
• Total Weight:  15 lbs.
• Housing Material:  Die Cast Aluminum
• Tube Material:  Carbon Steel
• Tube Plating:  Chrome
• Rack Gain:  1.75" per turn
• No. Turns Lock-to-Lock:  3.1
• Total Rack Travel:  5.5"
• Overall Length (end to end):  43.75"
• Housing Length:  20-3/8"
• Housing O.D.:  2.1" (both ends)
• Input Shaft Angle:  72°
• Input Shaft Spline Size: 9/16"-26
• Input Shaft Length:  6.56"
• Pivot Points:  24.5"
• Inner End Diameter:  14mm (.551")
• Inner End Thread Size:  9/16"-18
• Driver Side Mount:  Spike (bushing req'd)
• Passenger Side Mount:  Spike (bushing req'd)
• Spike Mount Center to Center Distance:  15.5"
• Bellows Material:  Nitrille Rubber
• Bellow Part No.: FR1502B (one pair)
• Bushing Part No.: FR1600 (one pair)
• Outer End Part No.: FR1603 (one pair)
