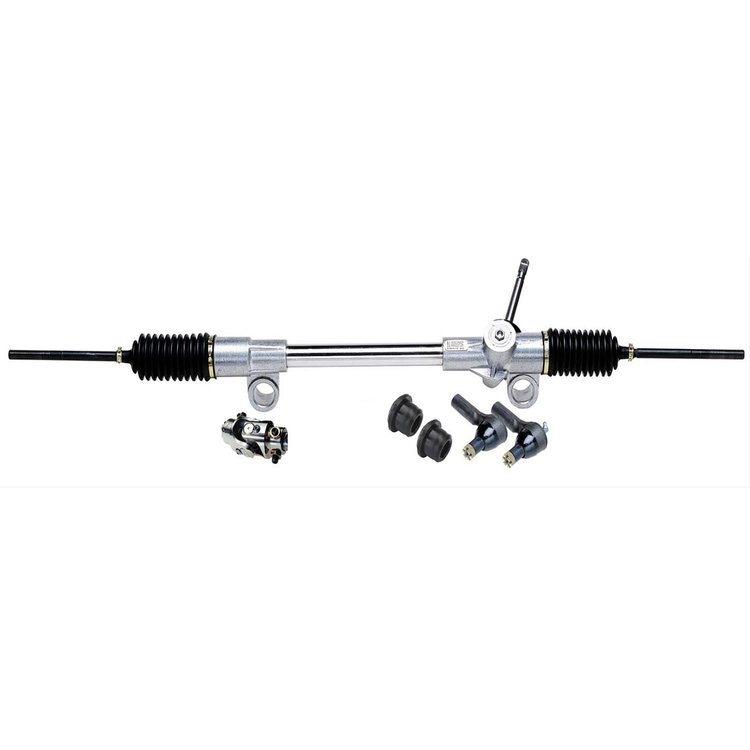

Kit includes:

• FR1508 Manual Rack and Pinion
• Shaft Adapter
• (2) Outer Tie Rod Ends
• (2) Mounting Bushings

FR1508 Specifications

• OEM Design Style:  94-04 Ford Mustang
• Steering Design:  Front Steer
• Total Weight:  12 lbs.
• Housing Material:  Die Cast Aluminum
• Tube Material:  Carbon Steel
• Tube Plating:  Chrome
• Rack Gain:  1.44" per turn
• No. Turns Lock-to-Lock:  4.00
• Total Rack Travel:  5.5"
• Overall Length (end to end):  48.5"
• Housing Length:  20-3/8"
• Housing O.D.:  2.1" (both ends)
• Input Shaft Angle:  72°
• Input Shaft Spline Size: 9/16"-26
• Input Shaft Length:  4.625"
• Pivot Points:  24.5"
• Inner End Diameter:  .590"
• Inner End Thread Size:  9/16"-18
• Driver Side Mount:  Spike (bushing req'd)
• Passenger Side Mount:  Spike (bushing req'd)
• Spike Mount Center to Center Distance:  15.5"
• Bellows Material:  Nitrille Rubber
• Bellow Part No.: FR1502B (one pair)
• Bushing Part No.: FR1600 (one pair)
• Outer End Part No.: FR1603 (one pair)
