Vehicle Info NeededFLAMING RIVERPART NUMBER: 898-FR1892D

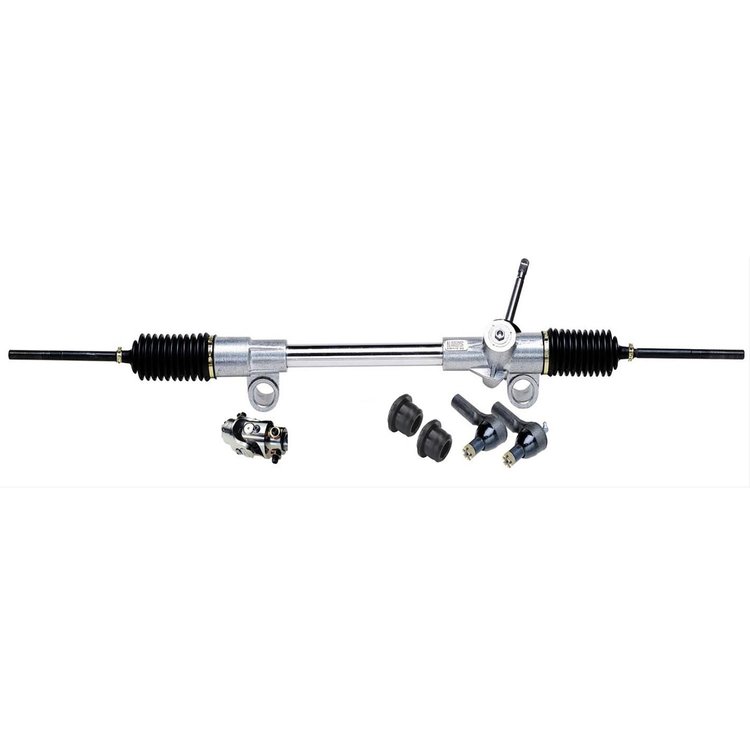

Manual Rack & Pinion w/Installation Kit 1994-2004 Ford Mustang
$1,09999
Ships on 09/16/2026
Lowest Price GuaranteeMustang Manual Rack & Pinions
Manual Rack & Pinion w/Installation Kit1994-2004 Ford Mustang With 898-FR1509M Shaft Assembly Standard Ratio Kit includes Manual Rack & Pinion, Shaft Assembly, (2) Outer Tie Rod Ends and (2) Mounting Bushings
Kit includes:
FR1508 Specifications
- OEM Design Style: 94-04 Ford Mustang
- Steering Design: Front Steer
- Total Weight: 12 lbs.
- Housing Material: Die Cast Aluminum
- Tube Material: Carbon Steel
- Tube Plating: Chrome
- Rack Gain: 1.44" per turn
- No. Turns Lock-to-Lock: 4.00
- Total Rack Travel: 5.5"
- Overall Length (end to end): 48.5"
- Housing Length: 20-3/8"
- Housing O.D.: 2.1" (both ends)
- Input Shaft Angle: 72°
- Input Shaft Spline Size: 9/16"-26
- Input Shaft Length: 4.625"
- Pivot Points: 24.5"
- Inner End Diameter: .590"
- Inner End Thread Size: 9/16"-18
- Driver Side Mount: Spike (bushing req'd)
- Passenger Side Mount: Spike (bushing req'd)
- Spike Mount Center to Center Distance: 15.5"
- Bellows Material: Nitrille Rubber
- Bellow Part No.: FR1502B (one pair)
- Bushing Part No.: FR1600 (one pair)
- Outer End Part No.: FR1603 (one pair)
These direct replacement lightweight rack and pinions are ideal for drag race or pro street applications. Flaming River racks are all completely new units, designed with the highest quality castings and components. Manual steering racks are responsive, stronger, and lighter than OEM racks and come in a variety of ratios, lengths, and pivot points.
Show More
Features:
- Ideal for Drag Race or Street Applications
- Completely New "Not Rebuilt"
- More Responsive, Stronger & Lighter
Part TypeRack and Pinion Complete Unit
Product LineFlaming River Manual Rack & Pinions
BrandFLAMING RIVER
Package Height8.0
Package Width9.0
Package Length47.0
Weight23.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberFR1892D
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
