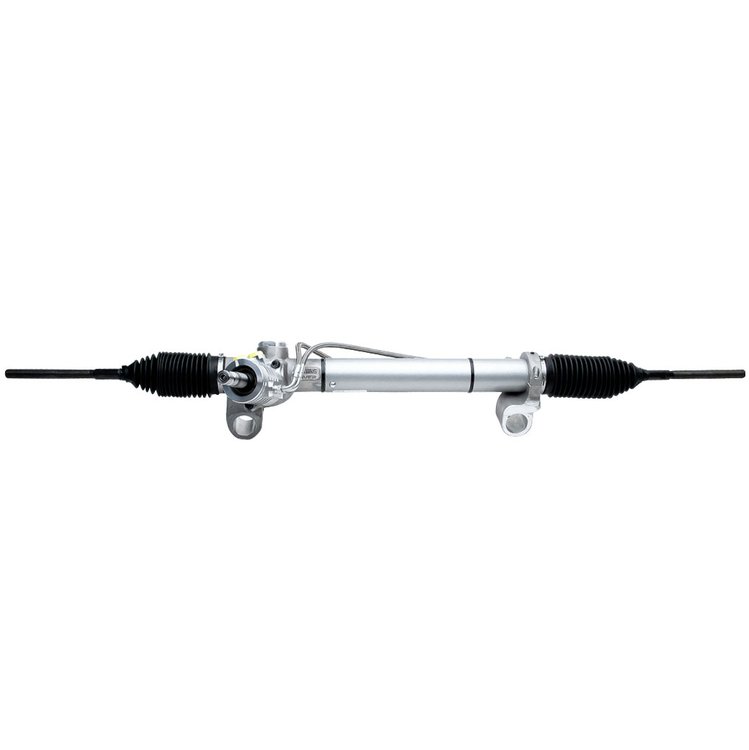

FR40004 Specifications

• Steering Design: Front Steer
• Total Weight: 23 lbs
• Housing Material: Die Cast Aluminum
• Tube Material: 1026 Dom Steel Tubing
• Tube Plating: Powder Coat
• Rack Gain: 2.27" Per Revolution
• No. Turns Lock-to-Lock: 2.7
• Total Rack Travel: 6.00"
• Overall Length (end to end): 48.76"
• Body Length (Tube/Casting): 23.5"
• Housing O.D.: 2.15" (1.98" at bellow clamp)
• Tube O.D. (passenger side): 2.02" (after powdercoating)
• Input Shaft Angle: 18°
• Input Shaft Spline Size: FR Pyramid
• Input Shaft Length: 2.5" - 2.63" from top of valve housing
• Pivot Points: 28.5"
• Inner End Diameter: .551"
• Inner End Thread Size: 9/16"-18
• Driver Side Mount: Spike (bushing req'd)
• Passenger Side Mount: Spike (bushing req'd)
• Spike Mount Center to Center Distance: 16"
• Bellows Material: TPV
• Bellows Part No.: 100163
• Bushing Part No.: N/A
• Outer End Part No.: FR1601 (2 req'd)
