Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

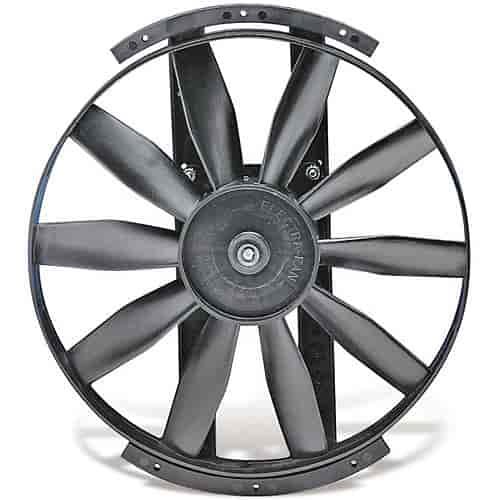

Universal Electra-Fans
- Universal Electra-Fan
- With AC relay & adjustable thermostat
- Reversible Fan Ring
- Easy Installation and Assembly
- Avail. w/ Or w/o Adjustable Thermostat
- Available w/Or w/o A/C Relay
- Compact; Versatile
- Affordable
- Installation Instructions
- With Wiring Diagram
Flex-A-Lite Electra Fan Features
- Blade Diameter: 12"
- Overall Size: 13-3/4" x 12" x 5-1/4"
- Reversible (pusher or puller)
- Moves 1050 cfm of air
- 9 amps @ 1900 RPM fan speed
- Cools 4 & 6-cyl engines to 115 HP
Part TypeElectric Fan
Product LineFlex-A-Lite Electra-Fans
BrandFLEX-A-LITE
Package Height13.75 in (349.25 mm)
Package Width12 in (304.8 mm)
Package Length13.8
Weight5.05 PG
Part CategoryPerformance Parts
Maximum Fan Rpm1,900 rpm
Blade MaterialPlastic
Fan QuantitySingle
Number Of Blades10 blades
Shroud MaterialGlass-reinforced nylon
Air Conditioning Relay IncludedNo
QuantitySold individually
Mounting Hardware IncludedYes
Thickness5.25 in (133.4 mm)
Fan Diameter12 in (304.8 mm)
Blade ColorBlack
TypeSingle
Amp Draw9.00 amps
Mounting Brackets IncludedYes
Maximum Fan Cfm1,050 cfm
Shroud ColorBlack
Diameter12 in (304.8 mm)
Vendor Part Number10
Package Qty1
Package TypeEA
