Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Radiator/Fan Combos

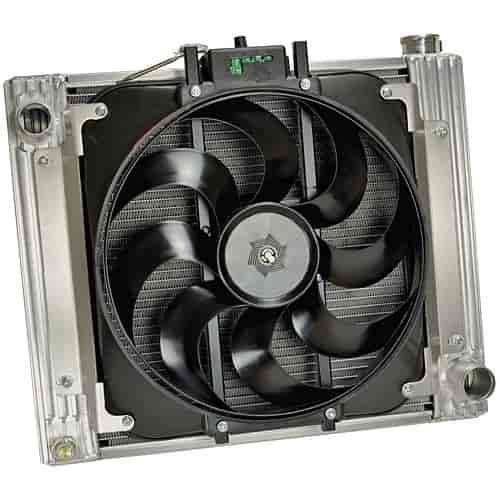

- Direct Fit Aluminum Radiator & Electric Fan
- 1972-86 Jeep CJ
- GM V8 Engine Conversion (Non-LS)
- Left Inlet (Driver Side)
- 22.5" W x 18.5" H (7" Deep Overall)
- 15" Fan Draws 19.5 amps
- A/C Relay and Adjustable Thermostat Controller
Performance Cooling Systems as Capable & Sturdy as a Jeep!
Available with or without an electric fan, bolt-in Flex-A-Fit Radiators have a dual 1/2" (400-60187 only) or 1" all-aluminum core that's welded by hand in the U.S. Flex-A-Lite's patented T-channels create a durable mount for the radiator, fan, and optional oil cooler or expansion tank. The radiator's core is protected when off-roading because the fan is mounted to the Flex-A-Fit sidetank, not through the core. The Flex-A-Fit design also removes the risk of a belt-driven fan hitting the shroud as the body and chassis flex during off-roading.
Features
- 17" 2-Row Aluminum Radiator Core
- 400-51169, 400-51168, and 400-60187: 15" Electric S-Blade Fan
- 400-52388 and 400-52389: 16" Electric S-Blade Fan
- Airflow: 3000 cfm
- L-Brackets Included
Part TypeCooling Fan Kit
Product LineFlex-a-lite Jeep Radiator and Fan Kits
BrandFLEX-A-LITE
Package Height10.0
Package Width21.75
Package Length39.0
Weight38.3 PG
Part CategoryPerformance Parts
Overall Thickness7 in (177.8 mm)
Overall Height18.5 in (469.9 mm)
Radiator Cap IncludedNo
Shroud MaterialGlass-reinforced nylon
Inlet LocationUpper driver side
Inlet Size (In.)1 1/2
Core Width17 in (431.8 mm)
Row Quantity2
Overall Width22.5 in (571.5 mm)
Tube Size1 in (25.4 mm)
Radiator FinishNatural
Transmission CoolerNo
Maximum Fan Cfm3,000 cfm
Shroud ColorBlack
Radiator StyleCrossflow
Blade MaterialPlastic
Outlet Size1.75 in (44.5 mm)
Fan QuantitySingle
Radiator MaterialAluminum
QuantitySold as a kit
Core Height18 in (457.2 mm)
Core Thickness2.25 in (57.15 mm)
Fan Diameter15 in (381 mm)
Blade ColorBlack
Outlet LocationLower passenger side
Fan IncludedYes
Vendor Part Number51168
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
