Ford

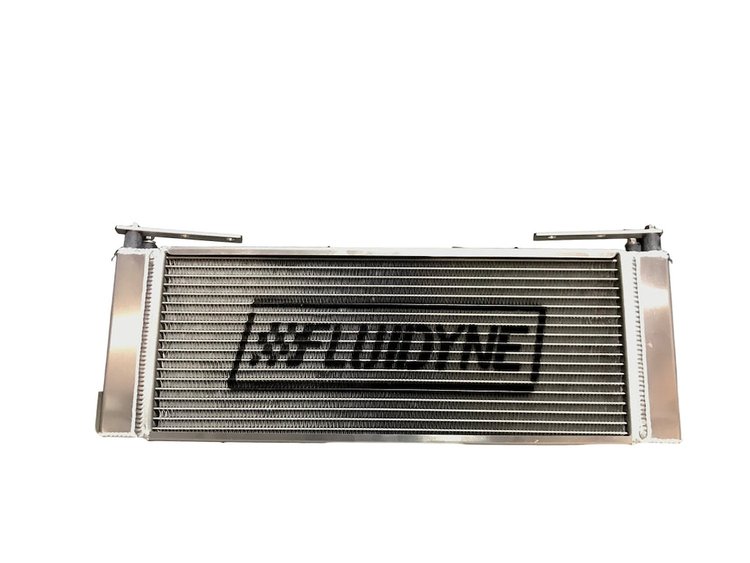

5-Row Supercharger Heat Exchanger
  • 1999-2004 Ford Lighting/Harley Davidson Pickup
  • Triple-Pass

    Fluidyne IFD.F15.9704.54SC Features:

    Enhance your next build with the pinnacle of cooling performance. Designed, engineered, and assembled in the USA, Fluidyne Radiators, Coolers, and Accessories deliver unmatched reliability and efficiency. Featuring cutting-edge LFT-Laminar Flow Technology and an exclusive fin design, they ensure superior cooling for any challenge!

    • Overall Dimensions: 25.5 in. L X 8.1 in. H X 3.5 in. D
    • Core Dimensions: 19.5 in. L X 7.5 in. H X 3.5 in. D
    • Weight: 11.8 lbs.
    • Tube Size: 0.75 in.
    • Inlet Size (in.): 0.5
    • Inlet Location: N/A
    • Outlet Size: 0.75 in.
    • Outlet Location: N/A
    • Finish: Natural
    • Material: Aluminum
    • Fins Per Inch: >16
    • Passes: Triple
    • Rows: 5
    • Transmission Cooler: N/A
    • Radiator Cap Included: N/A
    • Eliminate Supercharger Heak Soak

      Fluidyne Heat Exchangers are engineered to optimize your supercharged engine’s performance. With a larger cooling capacity than stock, they deliver superior discharge air cooling and minimize blower heat soak during extended high-boost conditions—resulting in increased power from a cooler intake charge. Constructed from durable aluminum and precision-welded for maximum efficiency, these heat exchangers feature welded mounting tabs for easy installation.

    Part TypeSupercharger Heat Exchanger
    Product LineFluidyne High-Performance Aluminum Heat Exchangers
    BrandFLUIDYNE
    Package Height7.8
    Package Width12.3
    Package Length28.7
    Weight11.795 PG
    Weight11.8 lbs.
    Part CategoryPerformance Parts
    Overall Height8.1 in.
    Outlet Size0.75 in.
    Radiator Cap IncludedN/A
    Overall Depth3.5 in.
    Overall Length25.5 in.
    Inlet LocationN/A
    MaterialAluminum
    Core Depth3.5 in.
    Product Weight11.8 lbs.
    Inlet Size (In.)0.5
    Core Height7.5 in.
    Outlet LocationN/A
    Tube Size0.75 in.
    Core Length19.5 in.
    Transmission CoolerN/A
    Part FitmentDirect Fit
    FinishNatural
    Vendor Part NumberIFD.F15.9704.54SC
    Package Qty1
    Package TypeEA
