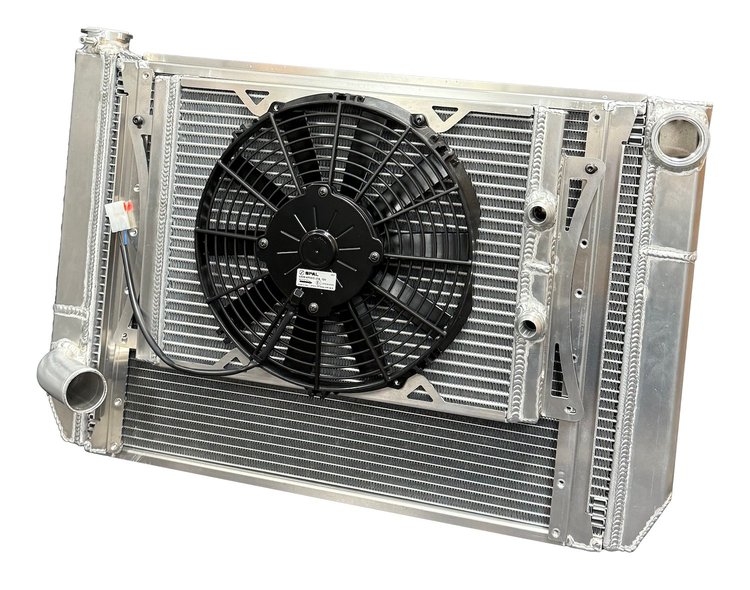

Fluidyne MGM.SLM.CLOSED.TPV2 Features:

Enhance your next build with the pinnacle of cooling performance. Designed, engineered, and assembled in the USA, Fluidyne Radiators, Coolers, and Accessories deliver unmatched reliability and efficiency. Featuring cutting-edge LFT-Laminar Flow Technology and an exclusive fin design, they ensure superior cooling for any challenge!

• 20 ORB Female Inlet - This allows you to run whatever hose setup you want without having to cut or weld
• Narrower - The V2 units are 28” wide vs. the 28.75” on the original. This allows a little clearance for the radiator so that in the event of a light crash, the radiator has more room to move and not get bent
• Tubes - Uses Fluidynes strongest tubes available which gives more resistance to flexing and increases rigidity
• Fins - These new units have the latest fin technology which cools ~10 percent more efficiently than the originals
• Length: 27.99″
• Height: 18″
• Depth: 6.61″
• Weight: 16 lbs.
• Core Length: 23.31″
• Core Height: 17.24″
• Core Depth: 1.77″
• Tube Size: 0.51″
• Outlet Diameter: 1.75″
• Inlet Size (in.): 20 ORB Female
• Inlet Location: Passenger Side
• Material: Aluminum
• Finish: Natural
• Fins Per Inch: >16
• Rows: 3
• Transmission Cooler: No
• Radiator Cap Included: No
