Vehicle Info NeededFLUIDYNEPART NUMBER: 091-J000039

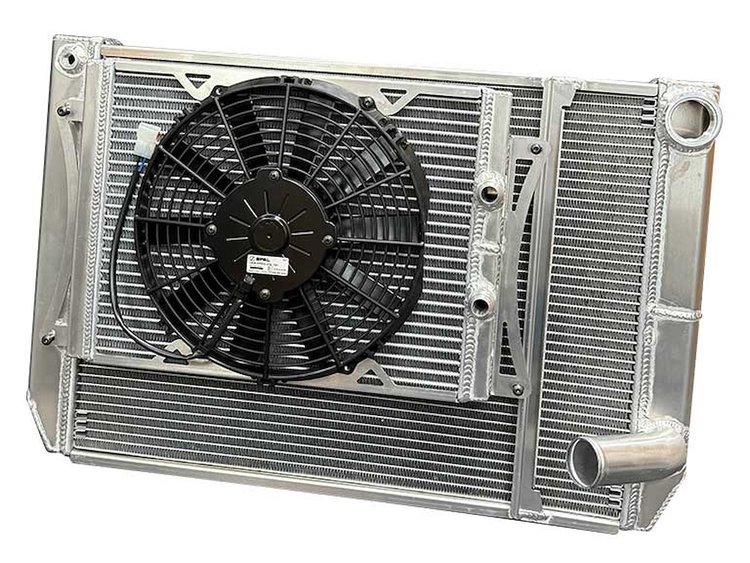

MFD.SLM.CLOSED.TPV2 Super Late-Model Triple-Pass 3-Row Aluminum Radiator V2, Ford Closed System, Complete Module w/ Cooler & Fan
$82240$1028.00You Save$205.60
Ships on 11/16/2026
Lowest Price GuaranteeItems You Need
![Fender Cover with Pocket [23 in. W x 31 1/2 in. L]](https://www.jegs.com/images/mini_200/500/555/555-65010.jpg)
FLUIDYNE
Part Number : 091-FIT.16ORB125
$2500
FLUIDYNE
Part Number : 091-FIT.16ORB150
$2500
FLUIDYNE
Part Number : 091-FIT.16ORB175
$2500
FLUIDYNE
Part Number : 091-FIT16ORB16AN
$2500
![No Spill Coolant Filling Funnel Kit [15-Piece]](https://www.jegs.com/images/mini_200/500/555/555-51220.jpg)
![Racing Super Coolant Additive [16 oz.]](https://www.jegs.com/images/mini_200/500/555/555-72324.jpg)
![Racing Coolant and Antifreeze with LP-3 [1 Gallon]](https://www.jegs.com/images/mini_200/500/555/555-72316.jpg)
![Ice Water Racing Coolant [1 Gallon, Non-Glycol]](https://www.jegs.com/images/mini_200/500/555/555-72314.jpg)
![Funnel [8.5 in. Overall Length]](https://www.jegs.com/images/mini_200/500/555/555-w4064.jpg)
![3-Ton Aluminum Floor Jack [6,000 lbs. Capacity]](https://www.jegs.com/images/mini_200/500/555/555-80077.jpg)
![Heavy-Duty Nitrile Gloves [7 mils Thick, Large]](https://www.jegs.com/images/mini_200/500/555/555-1124.jpg)
![Penetrating Oil [11 oz. Aerosol Can]](https://www.jegs.com/images/mini_200/600/639/639-11043.jpg)
Super Late-Model
Super Late-Model Triple-Pass 3-Row Aluminum Radiator V2Ford Closed System Complete Module w/ Oil Cooler & 11 in. SPAL Fan 20 ORB Female Inlet 27.99 in. L x 18 in. H x 6.61 in. D
Fluidyne MFD.SLM.CLOSED.TPV2 Features:
Enhance your next build with the pinnacle of cooling performance. Designed, engineered, and assembled in the USA, Fluidyne Radiators, Coolers, and Accessories deliver unmatched reliability and efficiency. Featuring cutting-edge LFT-Laminar Flow Technology and an exclusive fin design, they ensure superior cooling for any challenge!
- 20 ORB Female Inlet - This allows you to run whatever hose setup you want without having to cut or weld
- Narrower - The V2 units are 28” wide vs. the 28.75” on the original. This allows a little clearance for the radiator so that in the event of a light crash, the radiator has more room to move and not get bent
- Tubes - Uses Fluidynes strongest tubes available which gives more resistance to flexing and increases rigidity
- Fins - These new units have the latest fin technology which cools ~10 percent more efficiently than the originals
- Length: 27.99″
- Height: 18″
- Depth: 6.61″
- Weight: 16 lbs.
- Core Length: 23.31″
- Core Height: 17.24″
- Core Depth: 1.77″
- Tube Size: 0.51″
- Outlet Diameter: 1.75″
- Inlet Size (in.): 20 ORB Female
- Inlet Location: Driver Side
- Material: Aluminum
- Finish: Natural
- Fins Per Inch: >16
- Rows: 3
- Transmission Cooler: No
- Radiator Cap Included: No
Superior Cooling for Circle Track Racing Applications
Fluidyne offers High-Performance Aluminum Racing Radiators that provide superior cooling efficiency and durability, ideal for circle track applications such as Dirt Modified and Late-Model. Designed to regulate engine temperatures effectively, these radiators help maximize vehicle performance, even in the most extreme racing conditions.
Part TypeRadiator
Product LineFluidyne High-Performance Aluminum Racing Radiators for Circle Track
BrandFLUIDYNE
Package Height6.0
Package Width22.0
Package Length34.0
Weight20.0 PG
Weight16 lbs.
Part CategoryPerformance Parts
Overall Height18 in.
Radiator Cap IncludedNo
Overall Depth6.61 in.
Outlet Diameter1.75 in.
Overall Length27.99 in.
Inlet LocationDriver Side
MaterialAluminum
Core Depth1.77 in.
Inlet Size (In.)20 ORB Female
Core Height17.24 in.
Tube Size0.51 in.
Core Length23.31 in.
Transmission CoolerNo
Part FitmentSemi Universal
FinishNatural
Vendor Part NumberMFD.SLM.CLOSED.TPV2
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
