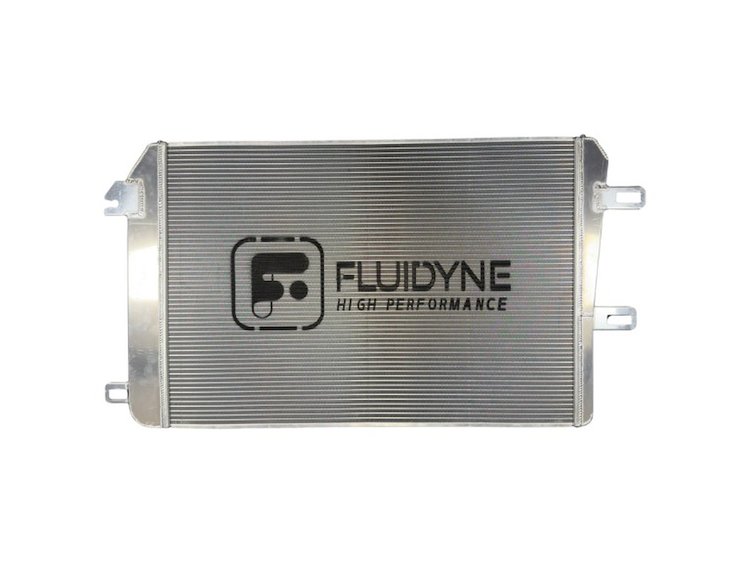

RGM.DUR.0610 5-Row Extruded Tube Aluminum Radiator 2006-2010 Chevy/GMC 2500/3500 6.6L Duramax
InfoVehicle Info Needed
FLUIDYNEPART NUMBER: 091-RGM.DUR.0610

RGM.DUR.0610 5-Row Extruded Tube Aluminum Radiator 2006-2010 Chevy/GMC 2500/3500 6.6L Duramax

$1,09500
ShippingShips on 12/01/2026
Lowest PriceLowest Price Guarantee

Items You Need

No Spill Coolant Filling Funnel Kit [15-Piece]

JEGS

No Spill Coolant Filling Funnel Kit [15-Piece]

Part Number : 555-51220
$1999$23.29
You Save$3.30
Racing Super Coolant Additive [16 oz.]

JEGS

Racing Super Coolant Additive [16 oz.]

Part Number : 555-72324
$1199$13.89
You Save$1.90
Racing Coolant and Antifreeze with LP-3 [1 Gallon]

JEGS

Racing Coolant and Antifreeze with LP-3 [1 Gallon]

Part Number : 555-72316
$2526$36.99
You Save$11.73
Ice Water Racing Coolant [1 Gallon, Non-Glycol]

JEGS

Ice Water Racing Coolant [1 Gallon, Non-Glycol]

Part Number : 555-72314
$2899$31.99
You Save$3.00

5-Row Extruded Tube Aluminum Radiator
  • 2006-2010 Chevy/GMC 2500/3500 6.6L DuramaxNatural Finish
  • 44.8 in. L x 24.7 in. H x 5.57 in. W

    Fluidyne RGM.DUR.0610 Features:

    • Extruded tube core is a single-piece design — Formed for unmatched rigidity, heat transfer, and durability
    • Solid-core construction eliminates the header joint, the #1 failure point in conventional designs - the same technology we use in the official NASCAR oil coolers
    • Built to handle real diesel stress — from daily towing to sled pulls and high-boost performance
    • Engineered for better airflow, faster heat dissipation, and lower temps under heavy load
    • The densest core and most aluminum contact surface area in the industry
    • Radiator Style: Crossflow
    • Core Length (inches): 34
    • Core Height (inches): 23.5
    • Core Depth (inches): 2
    • Radiator Inlet Size (inches): 1.8
    • Radiator Outlet Size (inches): 2
    • Inlet Location: Upper driver’s side
    • Outlet Location: Lower passenger side
    • Finish: Natural
    • Material: Aluminum
    • Rows: 5
    • Trans Cooler: Yes
    • Trans Cooler Adapter Fittings Included: No
    • Trans Cooler Line Connection: None
    • Fan Included: No
    • Radiator Cap Included: No
  • Part TypeRadiator
    BrandFLUIDYNE
    Package Height2.0
    Package Width23.5
    Package Length34.0
    Weight25.0 PG
    Part CategoryPerformance Parts
    Overall Height24.7 in.
    Outlet Size2 in.
    Radiator Cap IncludedNo
    QuantitySold Individually
    Overall Length44.8 in.
    Inlet LocationUpper driver's side
    MaterialAluminum
    Inlet Size (In.)1.8 in.
    Core Height23.5 in.
    Core Thickness2
    Outlet LocationLower passenger side
    Fan IncludedNo
    Core Length34 in.
    Transmission CoolerYes
    Part FitmentDirect Fit
    FinishNatural
    Core Row Quantity5
    Radiator StyleCrossflow
    Vendor Part NumberRGM.DUR.0610
    Package Qty1
    Package TypeEA
