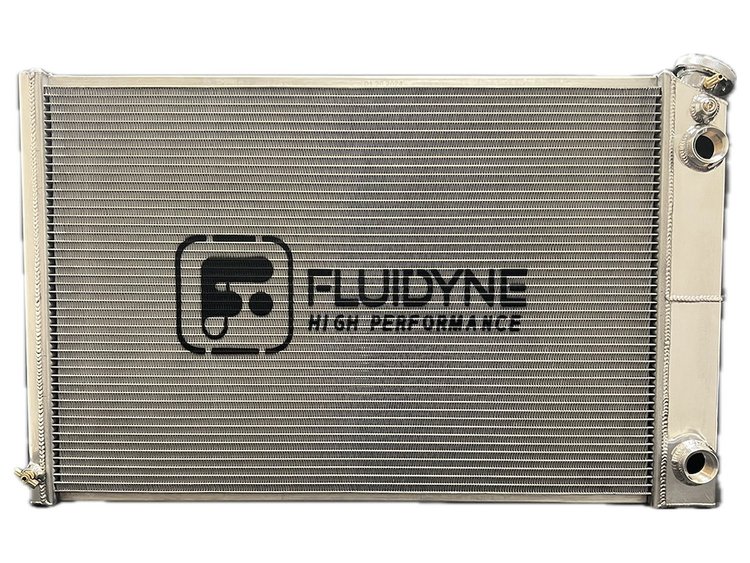

RGM.3R3321.LS LS Swap 3-Row Dual-Pass Radiator, 1973-1987 Chevy C10 Truck, 33 in. x 21 in.
InfoVehicle Info Needed
FLUIDYNEPART NUMBER: 091-RGM3R3321LS

RGM.3R3321.LS LS Swap 3-Row Dual-Pass Radiator, 1973-1987 Chevy C10 Truck, 33 in. x 21 in.

$45303
2 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

FIT.16ORB125 16 ORB (16 AN) Male to Hose Barb & AN Adapters, 1.25 in. Hose Barb, Satin Aluminum

FLUIDYNE

FIT.16ORB125 16 ORB (16 AN) Male to Hose Barb & AN Adapters, 1.25 in. Hose Barb, Satin Aluminum

Part Number : 091-FIT.16ORB125
$2500
FIT.16ORB150 16 ORB (16 AN) Male to Hose Barb & AN Adapters, 1.50 in. Hose Barb, Satin Aluminum

FLUIDYNE

FIT.16ORB150 16 ORB (16 AN) Male to Hose Barb & AN Adapters, 1.50 in. Hose Barb, Satin Aluminum

Part Number : 091-FIT.16ORB150
$2500
FIT.16ORB175 16 ORB (16 AN) Male to Hose Barb & AN Adapters, 1.75 in. Hose Barb, Satin Aluminum

FLUIDYNE

FIT.16ORB175 16 ORB (16 AN) Male to Hose Barb & AN Adapters, 1.75 in. Hose Barb, Satin Aluminum

Part Number : 091-FIT.16ORB175
$2500
FIT.16ORB16AN 16 ORB Male to -16 AN Male Adapters, Satin Aluminum

FLUIDYNE

FIT.16ORB16AN 16 ORB Male to -16 AN Male Adapters, Satin Aluminum

Part Number : 091-FIT16ORB16AN
$2500

GM
LS Swap 3-Row Dual-Pass Radiator
  • 1973-1987 Chevy C10 Truck
  • 33 in. x 21 in.

    Fluidyne RGM.3R3321.LS Features:

    Enhance your next build with the pinnacle of cooling performance. Designed, engineered, and assembled in the USA, Fluidyne Radiators, Coolers, and Accessories deliver unmatched reliability and efficiency. Featuring cutting-edge LFT-Laminar Flow Technology and an exclusive fin design, they ensure superior cooling for any challenge!

    • Overall Dimensions: 33 in. L X 20.25 in. H X 3 in. D
    • Core Dimensions: 28.25 in. L X 18.75 in. H X 2.25 in. D
    • Weight: 24 lbs.
    • Tube Size: 0.625 in.
    • Inlet Size (in.): 16AN
    • Inlet Location: Passenger Side
    • Outlet Size: 16AN
    • Outlet Location: Passenger Side
    • Finish: Mirror Polished
    • Material: Aluminum
    • Fins Per Inch: >16
    • Passes: Dual
    • Rows: 3
    • Transmission Cooler: No
    • Radiator Cap Included: Yes
  • Part TypeRadiator
    BrandFLUIDYNE
    Package Height6.25
    Package Width25.5
    Package Length35.5
    Weight21.98 PG
    Weight24 lbs.
    Part CategoryPerformance Parts
    Overall Height20.25 in.
    Outlet Size16AN
    Radiator Cap IncludedYes
    Overall Depth3 in.
    Overall Length33 in.
    Inlet LocationPassenger Side
    MaterialAluminum
    Core Depth2.25 in.
    Product Weight24 lbs.
    Inlet Size (In.)16AN
    Core Height18.75 in.
    Outlet LocationPassenger Side
    Tube Size0.625 in.
    Core Length28.25 in.
    Transmission CoolerNo
    Part FitmentDirect Fit
    FinishMirror Polished
    Vendor Part NumberRGM.3R3321.LS
    Package Qty1
    Package TypeEA
