Ford Racing's 5.0L Mustang "Aluminator" crate engine is a modern 5.0L 32-valve DOHC V-8 that uses advanced features like Twin Independent Variable Camshaft Timing (Ti-VCT) to deliver big power. Unlike the factory 5.0L engine, the "Aluminator" is built with low compression forged pistons and H-beam connecting rods to meet the demands of forced induction.
• 5.0L (302 cubic inches)
• 9.5:1 compression ratio for supercharged applications (nominal)
• Mahle Hard Anodized forged pistons with Graphal low friction coating
• Manley H-beam connecting rods with ARP bolts
• Lightweight aluminum cylinder block, features cross-bolted main bearing caps and thick main bearing bulkheads for bottom-end strength
• Large rear sump oil pan with 8qt capacity features optimized oil drainback and windage tray to control oil and improve high-rpm performance
• Tuned composite Mustang GT intake manifold with production drive by wire 80 mm throttle body
• Four-valve-per-cylinder aluminum heads with roller-finger followers reduce friction with Boss Valve Springs, M-6513-M50BR
• Includes manual transmission engine harness, 6-bolt pressure plate flywheel and pilot bearing
• Front Cover is modified for Ford Racing Supercharger Kits: M-6066-MGT23TD, M-6066-MGT23PTD
• Includes colder, heat range zero (0) spark plugs for supercharging, part no: M-12405-M50
• Includes Ford Racing oil filter, part no: M-6731-FL820
• Vehicle harness and PCM not included. Use Ford Racing wiring, PCM and installation kit M-6017-A504V designed for street rod/project car installation.
• Does not include alternator, for alternator kit see M-8600-M50BALT
• Remote Mount Filter Adapter M-6881-M50 available for applications requiring oil filter relocation
• Engine mount bosses and bellhousing mount pattern common to 4.6L modular engines.
• NOTE: Due to 9.5:1 compression ratio, custom tuning is required for optimum performance

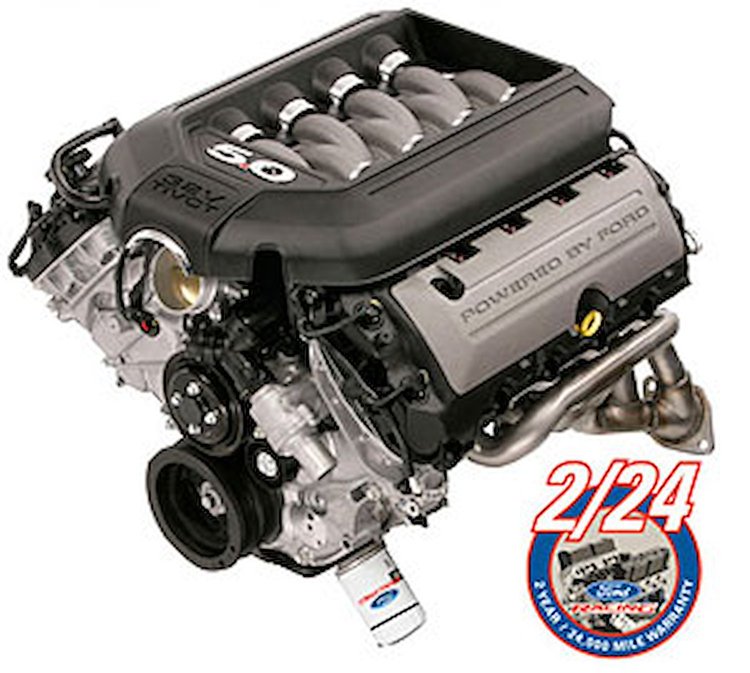

• Shown with optional 5.0L Mustang engine cover kit, Part No: M-9680-M50

Engine Break-In Procedure

Fill the engine with 5W50 full synthetic engine oil. For the first 500 miles of operation do not drive for long periods at any single speed, always vary your speed. Do not tow a trailer or put other heavy loads on the vehicle. Check the engine oil and coolant levels daily. At 500 Miles change the engine oil and filter. Check fuel and ignition settings; adjust valves (where applicable).

The Ford Performance 5.0L Coyote "Aluminator" crate engine is a modern 5.0L 32-valve DOHC V-8 that uses advanced features like Twin Independent Variable Camshaft Timing (Ti-VCT) to deliver big power. Unlike the factory 5.0L engine, the "Aluminator" is built with low compression forged pistons and H-beam connecting rods to meet the demands of forced induction. ** Vehicle harness and PCM not included. Use Ford Performance wiring, PCM and installation kit M-6017-504V designed for street rod/project car installation. Can also be equipped with automatic engine harness and then used in conjunction with automatic transmission controls pack - see M-6017-M50A for more information. Engine mount bosses and bell housing mount pattern common to 4.6L modular engines. NOTE: Due to 9.5:1 compression ratio, custom tuning is required for optimum performance. Includes Ford Performance 5.0L Mustang engine cover kit - M-9680-M50A. Note: In order for low oil sensor to function in 2015-2016 Mustang, re-use existing oil pan or replace with BR3Z-6675-A pan, available at any Ford dealer.
