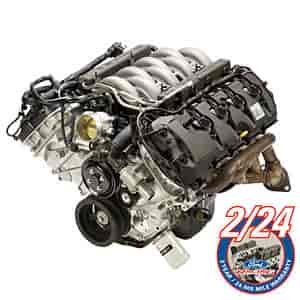

Crate Engine 2011-14 Mustang GT 5.0L Coyote 4V "Ti-VCT"

Name: Crate Engine 2011-14 Mustang GT 5.0L Coyote 4V "Ti-VCT"
Brand: FORD PERFORMANCE
SKU: 397-M-6007-M50
Price: 8118.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Engine Control Packs

Ford Racing Crate Engine

2011-14 Mustang GT 5.0L Coyote 4V 'Ti-VCT'

Naturally Aspirated

11.0:1 Compression ratio

420 horsepower @ 6500 rpm
390 ft.-lb.+ of torque @ 4250 rpm
High-performance 5.0-liter, four-valve Ti-VCT engine
Displacement 302 cu. in.
3.63 bore x 3.65-in stroke
Aluminum block
Forged steel crankshaft
Forged steel connecting rods
Cast aluminum pistons
Aluminum cylinder heads, DOHC, four valves per cylinder, variable intake, variable camshaft timing,
Large sump oil pan with 8qt capacity
11.0:1 Compression ratio
Tuned composite intake manifold provides efficient air delivery and weight savings
80mm single bore "drive by wire" throttlebody
Includes manual transmission engine harness and flywheel
Vehicle harness and PCM not included
Use Ford Racing's NEW wiring, PCM and installation kit M-6017-A504V designed for street rod/project car installation.
Does not include alternator, for alternator kit see M-8600-M50BALT
2011 5.0L Mustang engine cover kit available, see M-9680-M50
Remote Mount Filter Adapter M-6881-M50 available for applications requiring oil filter relocation
Engine mount bosses and bellhousing mount pattern common to 4.6L modular engines.
Direct replacement for 2011-2012 Mustangs with engine code CG-397-AA
Photo and specs may vary. These features apply for engine code CG-397-AA. Engines are this build code or newer while supplies last.
Engine weight: 444 lbs
