Modular

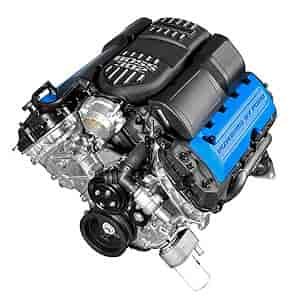

Ford Racing Crate Engine 2011-14 Mustang Boss 302 5.0L 4V 'Ti-VCT' 444 hp @ 7400 RPM 380 lb-ft of torque @ 4500 RPM
- Ford Racing's aluminum 5.0L Mustang Boss 302 crate engine takes the Ti-VCT 5.0L engine to the next level of performance with high flow CNC cylinder heads and revised intake to deliver 444 horsepower and 380 ft.-lb.+ of torque (with premium fuel). The lightweight aluminum cylinder block features cross-bolted main bearing caps and thick main bearing bulkheads for bottom-end strength. For the track, the oil pan features a large sump 8.5 qt capacity with revised oil pan baffling for improved oil control under hard cornering.
- 444 hp @ 7400 RPM
- 380 lb-ft of torque @ 4500 RPM
- High-performance 5.0-liter, four-valve Ti-VCT engine
- Displacement 302 cu. in.
- 3.63 bore x 3.65-in stroke
- Aluminum block
- Forged steel crankshaft
- Upgraded sinter-forged connecting rods for improved strength
- Forged aluminum pistons
- Aluminum cylinder heads, DOHC, four valves per cylinder, variable intake, variable camshaft timing,
- High-strength aluminum-alloy cylinder heads with fully CNC-machined ports and chambers for exceptional high-rpm airflow without sacrificing low-speed torque
- Sodium-filled exhaust valves for improved heat dissipation
- 11.0:1 compression ratio
- Revised composite intake system with shorter runners, inspired by Ford Racing's Daytona Prototype engine program
- 80mm single bore "drive by wire" throttlebody
- Includes manual transmission engine harness and flywheel
- Vehicle harness and PCM not included
- Boss 302 crate engine shown with optional Ford blue coil pack covers FRPP part #: M-6P067-M50B and NVH insulator pads, Ford dealer part #: CR3Z-6N041-A. sold separately.
- Engine mount bosses and bellhousing mount pattern common to 4.6L modular engines.
- Photo and specs may vary.
- Engine weight: 444 lbs
Part TypeEngine
BrandFORD PERFORMANCE
Package Height36.0
Package Width36.0
Package Length41.0
Weight566.0 PG
Part CategoryPerformance Parts
Fuel DeliveryFuel Injection
FinishNatural
Compression Ratio11: 1
Vendor Part NumberM-6007-M50B
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
