Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

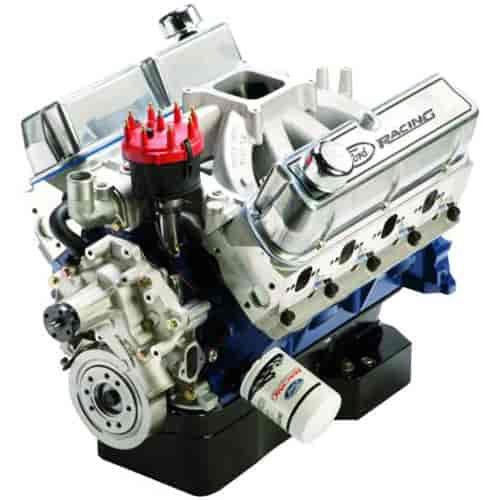

- Ford Racing 374ci Engine
- 490HP/450TQ
- Sealed
Engine Features: - 374 cubic inches 4.125" bore - 3.500" stroke
- 9.2 deck BOSS 351 block with 4-bolt mains
- 490 HP @ 6,200 / 450 lb.ft. torque @ 5,100 w/ MSD Atomic Fuel Injection System
- 10.5:1 compression ratio
- Forged steel Eagle crank, Eagle steel I-beam connecting rods
- Mahle forged pistons
- M-6049-Z304DA "Z" Aluminum cylinder heads w/ 2.02" intake and 1.60" stainless steel valves
- Edelbrock Super Victor Intake manifold
- Hydraulic roller tappet camshaft, .526" lift intake and exhaust, 226 degree intake duration @ .050" and 226 degree exhaust duration at .050"
- 1.65:1 Roller Rocker Arms
- M-6268-B302 double roller timing chain
- 7 quart steel oil pan - rear sump
- Edelbrock water pump
- SFI approved harmonic balancer
- MSD Billet distributor
- Factory sealed for competition
- Engine is internally balanced, "0" balance flywheel required
- Flywheel is not included INSTALLATION NOTES: See engine installation and tuning tips on page 40. Some or all of the following items may need to be changed from your original engine or modified for proper installation:
- This engine has a rear sump performance oil pan and pickup, regular rotation timing cover and regular rotation water pump, and non-EFI valve covers. Depending on your application, a different timing cover, water pump, performance oil pan and pickup may be required. See installation notes
- Fuel pump eccentric M-6287-B302 installed, allows use of mechanical fuel pump
- A standard rotation water pump is installed on the engine. Other applications may require different water pumps and timing chain covers are available
- The damper M-6316-C302 with counterweight removed, may require a spacer for pulley alignment.
- The flywheel M-6375-D302 not included should work for most 157-tooth manual transmission applications. For other transmission applications use the proper "0" balance flywheel.
- Firing order 1-3-7-2-6-5-4-8 (5.0L HO and 351W order).
Part TypeEngine
BrandFORD PERFORMANCE
Package Height35.75
Package Width36.5
Package Length38.75
Weight350.0 PG
Part CategoryPerformance Parts
Fuel DeliveryFuel Injection
FinishNatural
Compression Ratio10.5:1
Vendor Part NumberM-6007-S374T
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
