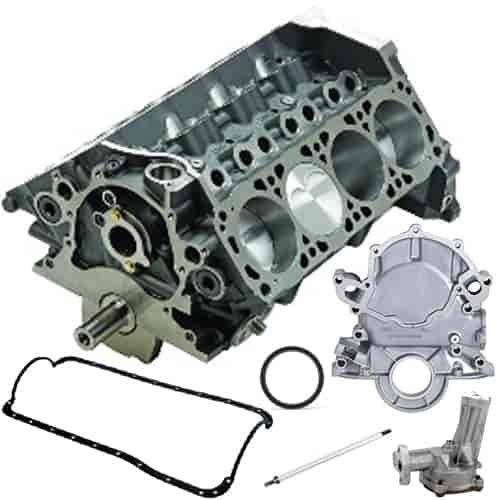

347ci Bundle 4.030" Bore x 3.400" Stroke

Name: 347ci Bundle 4.030" Bore x 3.400" Stroke
Brand: FORD PERFORMANCE
SKU: 397-M-6009-347B
Price: 5337.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ford 302-Based Small Block Bundles

4.030'' Bore x 3.400'' Stroke

Finish this block your way by adding cylinder heads (works with most aftermarket performance heads), camshaft (compatible with hydraulic roller cam), intake, and oil pan. It's the same block used in 347 sealed racing crate engines 397-M-6007-D347SR and 397-M-6007-S347JR. This block is built with pistons designed for 20° valve angle heads (will fit stock or spread valve guide centerlines).
Bundle Part Numbers
Short Block 397-M-6009-347
Timing Chain Cover 397-M-6059-D351
High-Volume Oil Pump 397-M-6600-D2
Oil Pump Driveshaft 397-M-6605-B302
Rear Main Seal 397-M-6701-B302
1-Piece Oil Pan Gasket 397-M-6710-A50
Block Info
302 BOSS 4-bolt Main Block
8.2" Deck Height, .010" below Piston (Nominal)
SCAT Forged Steel Crankshaft
SCAT Forged Steel I-Beam Connecting Rods
Mahle Forged Aluminum Pistons (With 6cc valve pockets & reliefs for Z304D, Z304P, N351, GT-40 & other inline valve Windsor cylinder heads)
Internal Balance
Recommended Parts (May vary based on your application)
Cylinder Heads* 397-M-6049-X306/X307/C3/D3/Z304DA
Head Bolts 397-M-6065-BOSS
Head Studs 397-M-6014-BOSS or 397-M-6014-Z304
Head Gaskets 397-M-6051-CP331 or 397-M-6051-S331
*Not designed for production 302/351W or 397-M-6049-Y302/Y303/X302/X303/X304/X305 cylinder heads
