Made in USA

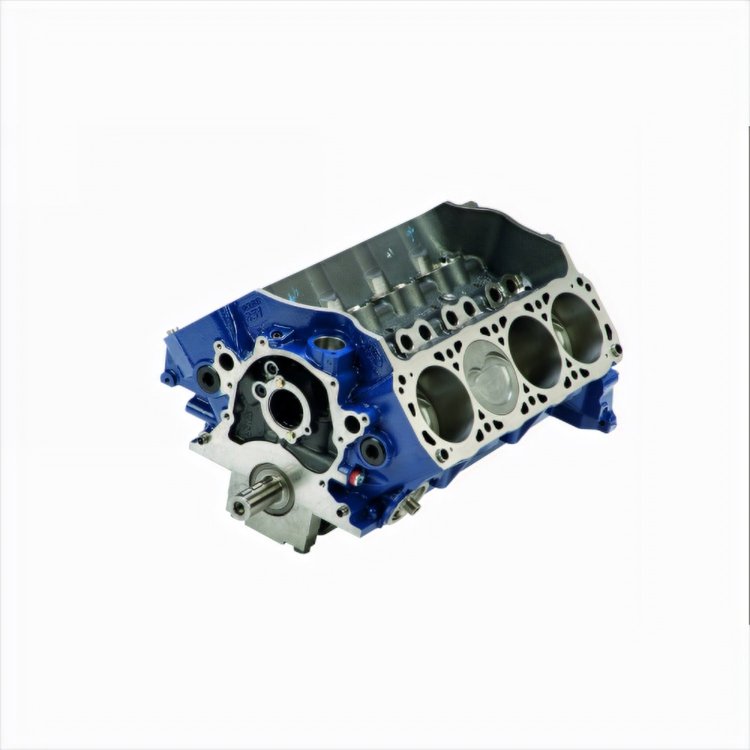

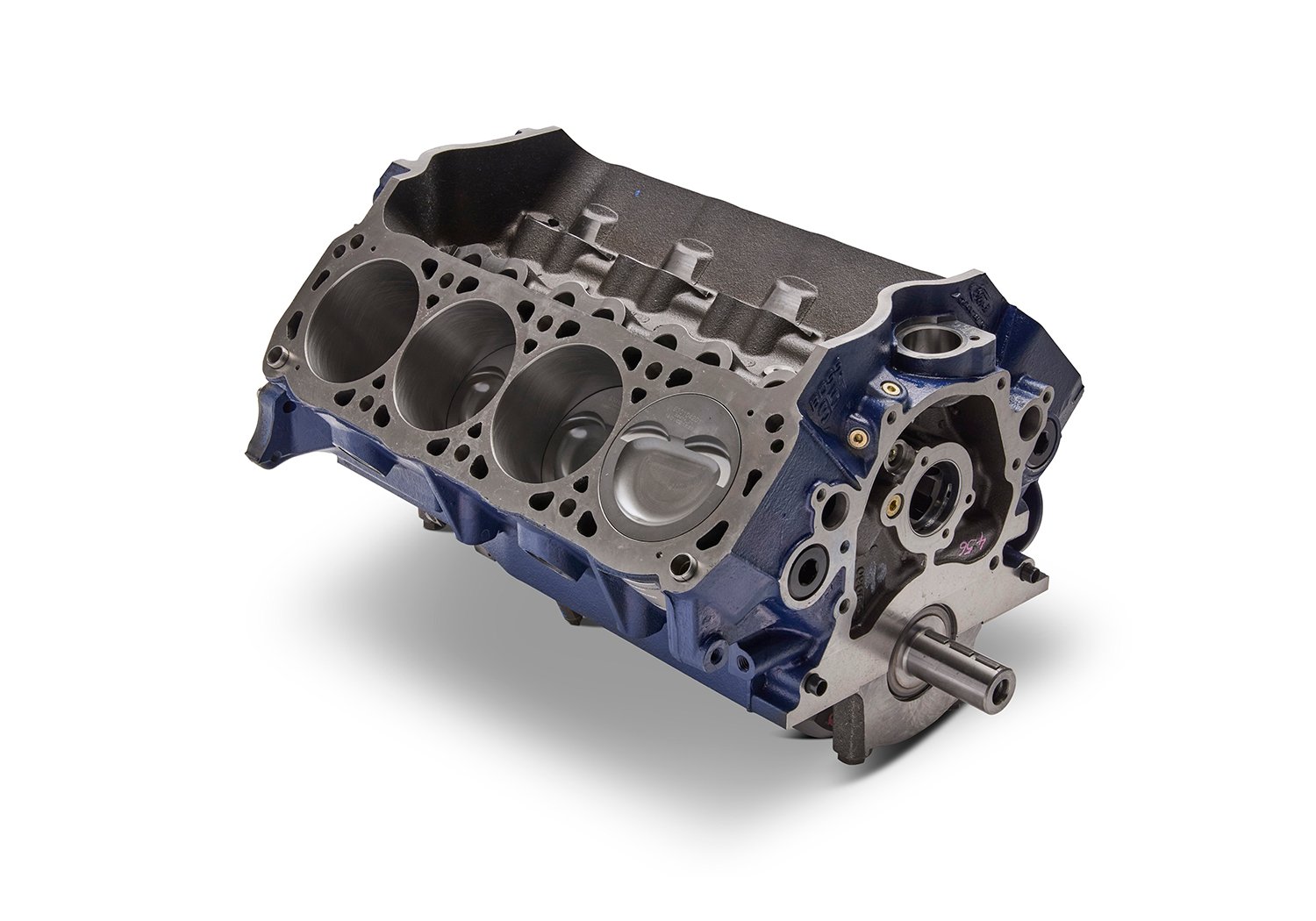

460 Cubic Inch Short Block BOSS
InfoVehicle Info Needed
FORD PERFORMANCEPART NUMBER: 397-M-6009-460

460 Cubic Inch Short Block BOSS

$5,84599
Truck Freight
3 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Small Block
    460 Cubic Inch Short Block
  • Boss 351W 9.5" Deck Block
  • SCAT Forged Steel Crank
  • SCAT Connecting Rods
  • Mahle Forged Pistons
  • Internally Balanced
  • Hydraulic Roller Compatible

    Want to build a powerful Ford engine for your vintage muscle car, street rod, Fox-body or late-model Mustang' A Ford Performance short block is the perfect foundation. Ford Performance Engineers have taken care of the toughest part of building a new engine by designing a strong a durable short block that offers a wide range of power possibilities. We use only the best parts for our short blocks, like a forged steel crankshaft, forged H-beam connecting rods with floating piston pins, forged Mahle pistons, and the Ford Performance BOSS block. And every Ford Performance short block is hand assembled in the U.S. with performance clearances - these aren't assembly line truck engines made by machines! WARNING: This part is designed and intended for competition use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this art on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.

  • Engine Type 351 Based Small Block Ford; 460 cu. in. Displacement
  • 4.150 in. Bore x 4.25 in. Stroke
  • Piston To Deck Height: 0.005 in. Below Piston To Deck Height
  • SCAT? Forged Steel Crankshaft 4.250 in. Stroke
  • SCAT? Forged Steel H-Beam w/6.125 in. Conn. Rods w/Floating Pins
  • Mahle? 4.150 in. Bore Forged Pistons; 30cc Piston Dish
  • Hydraulic Roller Camshaft Compatible
  • Assembled and Ready For Your Heads/Cam/Timing Set
  • 351W Bolt Pattern/Oil Pan/Timing Cover
  • High-Performance Harmonic Balancer M-6316-D302 is Recommended
  • Built With All New Parts
  • Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Build Your Engine Exactly How You Want It From The Block Up

Ford Racing offers these short blocks to allow anyone to build an engine for their Ford exactly how they want it. The Ford Short Block is the perfect start to any Ford engine build. Short block offerings start at the versatile modular 5.0L Stroker block, all the way up to the base of a 460CI. When using Ford Racing Short Blocks to build your next engine, the options for performance are endless!

Show More



Features
  • Start Your New Engine Build With High Quality Blocks
  • Precision Engineered To Provide Maximum Performance
  • Endless Power Possibilities
Part TypeShort Block
Product LineFord Performance Short Blocks
BrandFORD PERFORMANCE
Package Height25.0
Package Width25.0
Package Length31.0
Weight332.0 PG
Part CategoryPerformance Parts
Main Journal Type351 Cleveland mains
Crankshaft MaterialForged 4340 steel
Engine Block MaterialCast iron
Connecting Rod MaterialForged 4340 steel
Harmonic Balancer IncludedNo
QuantitySold individually
Flexplate IncludedNo
AssembledYes
Connecting Rod Beam StyleH Beam
Deck Height9.5 in (241.3 mm)
Flywheel IncludedNo
Engine BalanceInternal
Rear Main Seal Style1-piece
Piston MaterialForged aluminum
Oil Pan IncludedNo
Part FitmentSemi Universal
Timing Cover IncludedNo
Vendor Part NumberM-6009-460
Package Qty1
Package TypeEA
