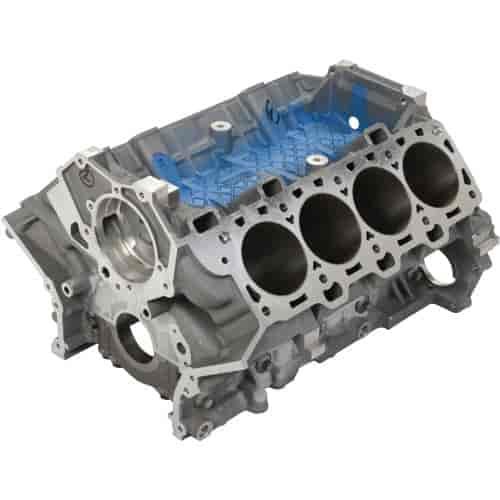

This is a strengthened casting of the 5.0L Coyote block built to support higher-horsepower engine builds, with extra material in the water jacket and a cast-in deck brace for cylinder wall and head gasket sealing.

Ford Performance M-6010-M50R Block Specifications

• Fits 5.0L Coyote high-horsepower builds.
• Low-pressure cast 319 aluminum with pressed-in thin-wall iron liners.
• 92.2 mm bore size.
• Cast-in brace on the intake side of the bore for added strength.
• Bare block; the deck and bores require final machining.
