Cylinder Head

Ford Performance 397-M-6049-SD73P Features:

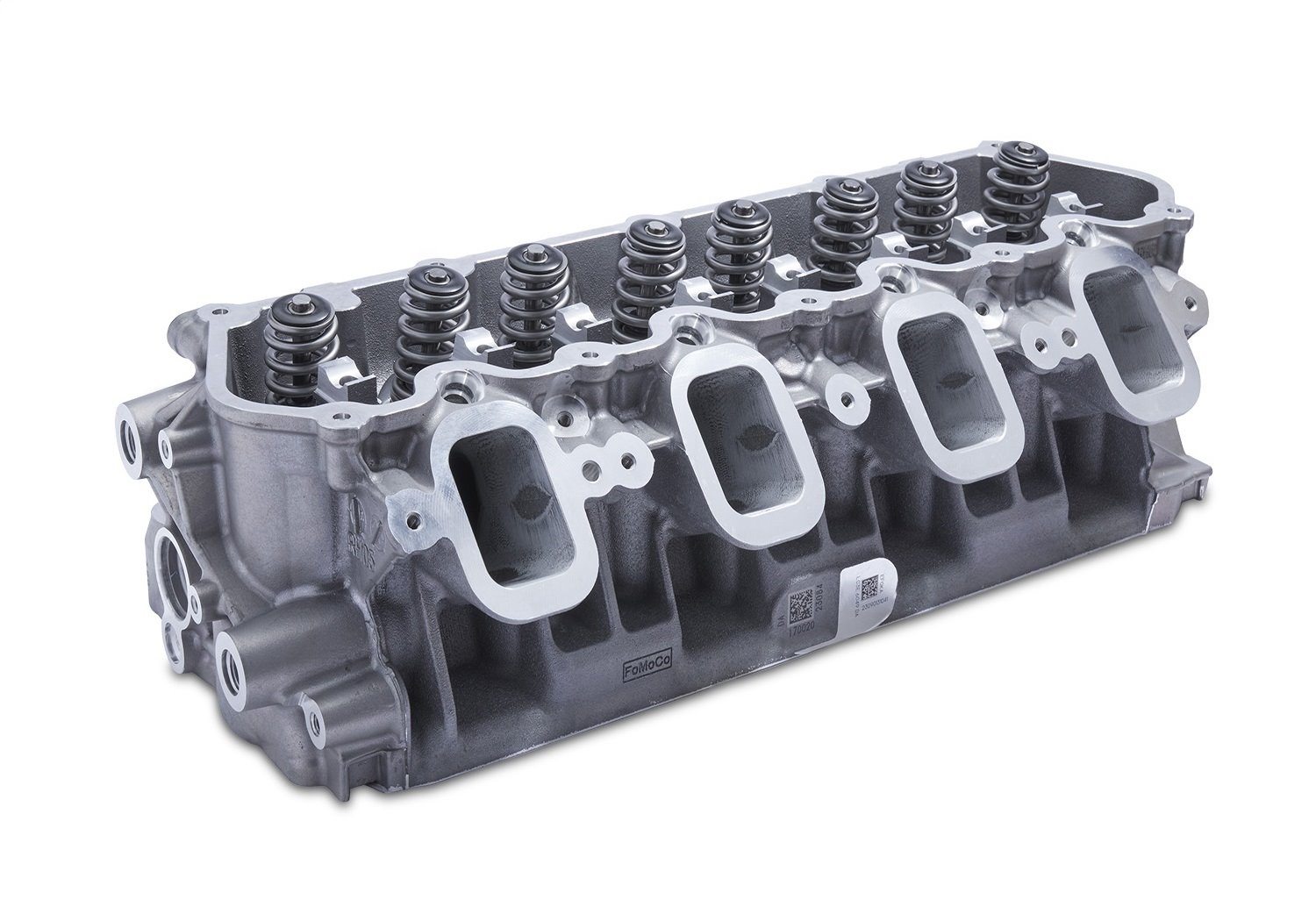

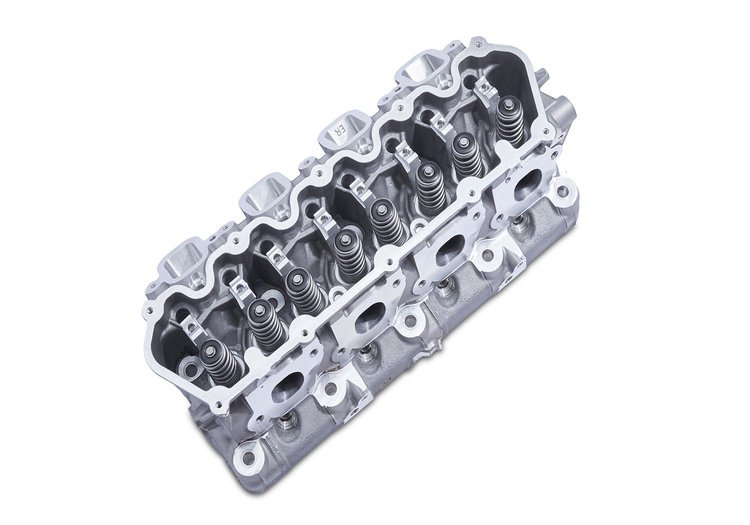

Ford Performance Parts CNC ported right side cylinder head for 2020+ Super Duty 7.3L gasoline engine.

• Assembled Ready For Installation
• Exhaust Valve Diameter 42.4mm (1.670 in.)
• Exhaust Valve Diameter 42.4mm [1.670 in.]
• Flow Data [CFM] 28 in. H20 On 4.250 in. Bore
• Flow Data (CFM) 28 in. H20 On 4.250 in. Bore
• For Left Side Please See M-6050-Sd73P
• CNC Ported Cast Aluminum
• As Used In The Ford Performance Megazilla™ 615HP Crate Engine
• 62.4 CC Combustion Chamber
• PAC 1282LX Valve Springs/Pac R393 Retainers
• 140-150No. Lbs 2.350 in. Installed Height
• 140-150No. Lbs. 2.350 in. Installed Height
• 390-415No. 1.750 in. Open
• Valve Stem Diameter 8 mm
• Intake Valve Diameter 55mm (2.165 in.)
• Intake Valve Diameter 55mm [2.165 in.]
