Vehicle Info NeededFORD PERFORMANCEPART NUMBER: 397-M-6303-M50B

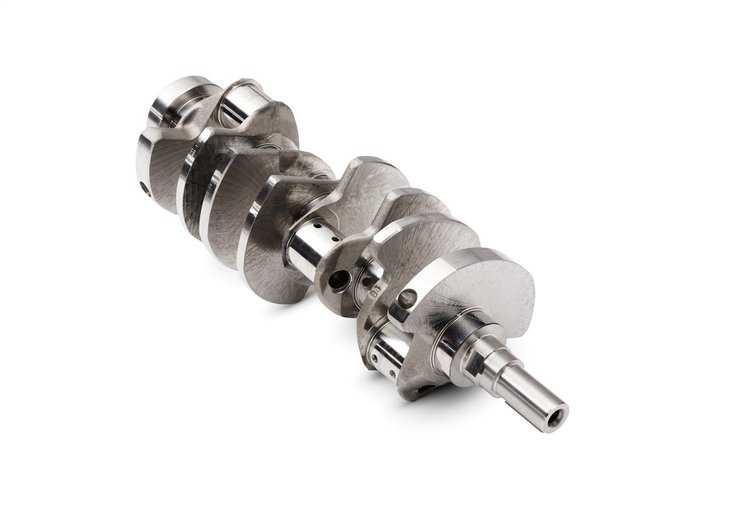

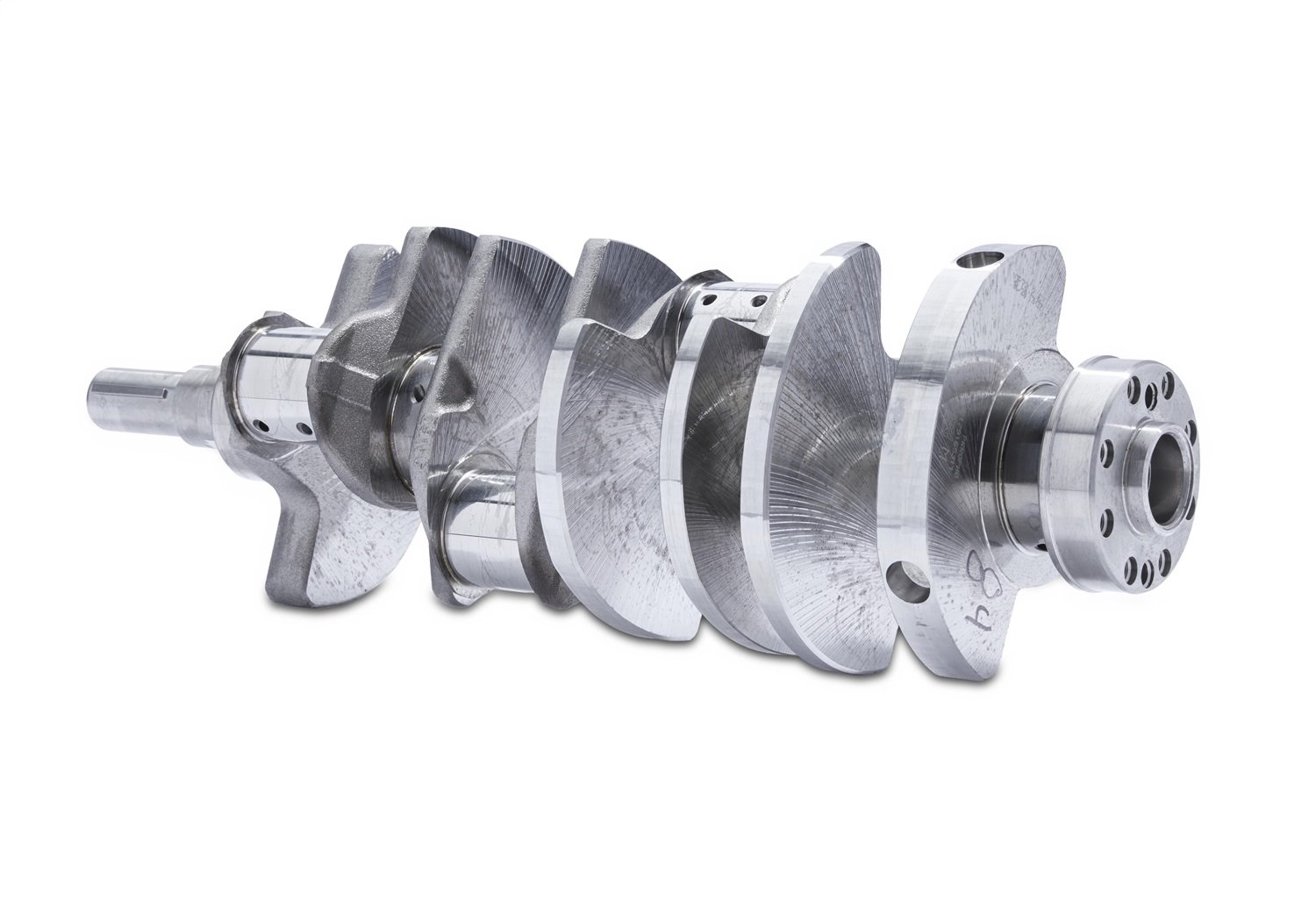

Crankshaft 2012-13 Mustang Boss 302 5.0L 4V "Ti-VCT"
$53999$599.99You Save$60.00
Ships on 09/16/2026
Lowest Price GuaranteeCrankshafts
- Crankshaft
- 2012-13 Mustang Boss 302 5.0L 4V 'Ti-VCT'
- Forged Steel
- 92.7mm Stroke
- Finish machined forged steel crankshaft as used in the production 2012 Mustang Boss 302 engine
- 92.7 mm stroke
- Balance is compatible with the BOSS 302 connecting rod and piston assembly
- Requires balancing if used with another rod and piston assembly
Part TypeCrankshaft
BrandFORD PERFORMANCE
Package Height8.0
Package Width10.0
Package Length25.0
Weight60.0 PG
Weight52 lb (23.583 kg)
Part CategoryPerformance Parts
Crankshaft MaterialForged 4130 steel
Rod Journal Diameter2.087 in (53 mm)
Main Journal Diameter2.658 in (67.513 mm)
LightenedNo
QuantitySold individually
Crankshaft Snout StyleStandard
Main Bearings IncludedNo
Engine BalanceInternal
Rod Bearings IncludedNo
Bob WeightOEM
Balancer Bolt Thread Size (Mm)M12-1.50
Rear Main Seal Style1-piece
Requires Narrow BearingsNo
Engine Stroke3.649 in (92.685 mm)
Vendor Part NumberM-6303-M50B
Package Qty1
Package TypeEA
