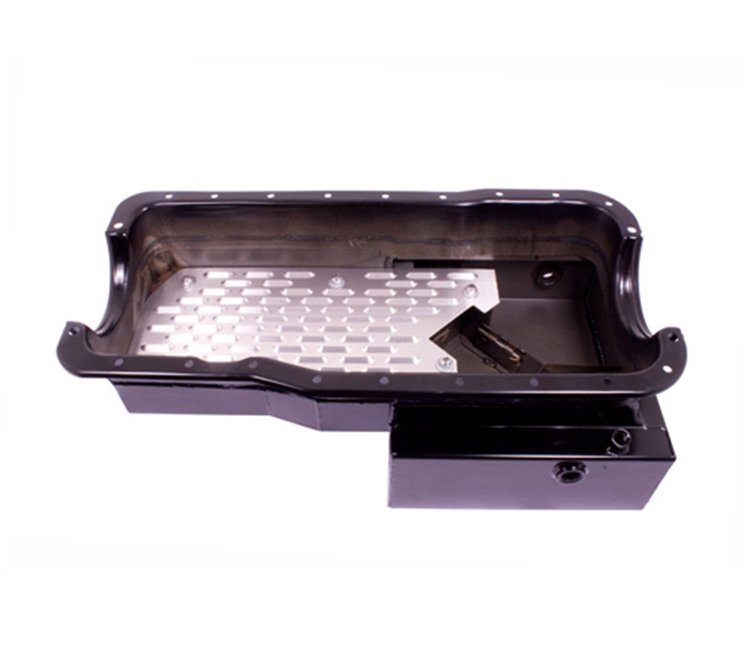

Vehicle Info NeededOil Pan Ford Mustang 302 Block
Ships on 09/14/2026
Lowest Price Guarantee- Oil Pan
- Ford Mustang 302 Block
- Front T-Sump
- 7 quarts
Designed by Ford Racing for use on its crate engines, the M-6675-FT302 oil pan is constructed to deliver power and durability. Features: - Full length scraper to direct oil away from the crankshaft
- Full length bolt in louvered windage tray to control oil
- Baffling and trap doors in the sump to keep the pickup submerged during performance driving
- 7 quart capacity
- Sump depth is 7.5" T-Sump width is 12.1" T-Sump length from the front of the pan is 10.6"
- Includes 3/8" NPT bung to mount an oil temperature sending unit
- Includes 3/8" NPT access hole to adjust oil pump spring pressure
- Fits standard 302 Windsor block oil pan bolt pattern
- Designed to clear 4-bolt main cap Ford Racing BOSS 302 blocks
- Semi-gloss black powder coat finish
- Laser cut and TIG welded in precision fixtures for consistent OEM level fit
- Used on FRPP M-6007-Z363FT Crate Engine
- Use pickup M-6622-FT302
If your Mustang spends more time out on the track rather than cruising the town. This Front T-Sump Racing Oil Pan from Ford Racing is the perfect choice. Ford Racing's oil pans are constructed to deliver power and durability for your Mustang. Ford Racing's Front T-Sump Racing Oil Pan is made from steel and features a full length scraper to direct oil away from the crankshaft, a full length bolt in louvered windage tray to control oil with baffling and trap doors in the sump to keep the pickup submerged during aggressive driving. It includes a 3/8" NPT bung to mount an oil temperature sending unit and a 3/8" NPT access hole to adjust oil pump spring pressure. Ford Racing laser cuts their oil pans with TIG welded in precision fixtures for consistent OE level fitment. This oil pan will look great under your engine with a semi-gloss black powder coated finish.
- Full Length Scraper To Direct Oil Away From The Crankshaft
- Full Length Bolt In Louvered Windage Tray To Control Oil
- Baffling And Trap Doors
