Vehicle Info NeededFORD PERFORMANCEPART NUMBER: 397-M-6675-FT351

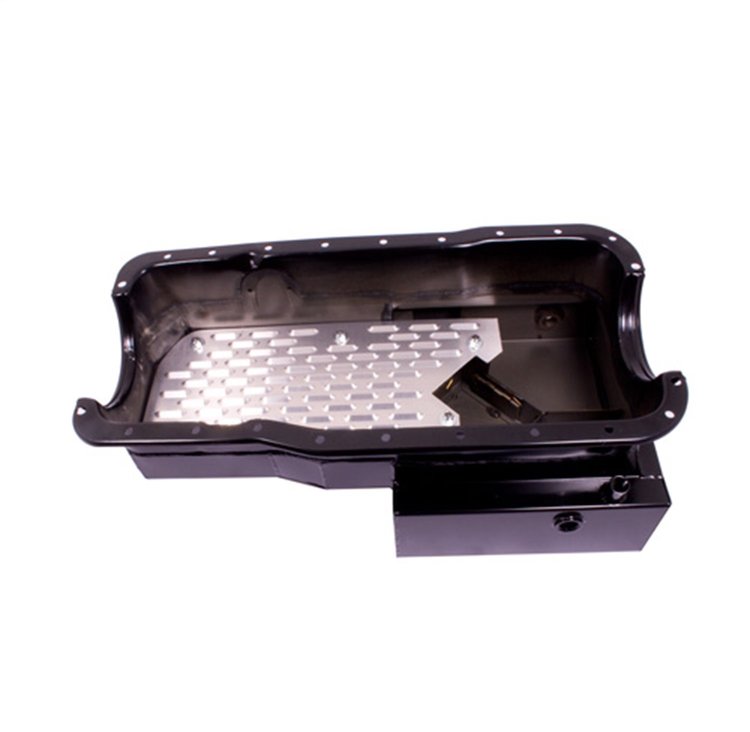

Oil Pan Ford Mustang 351W Block
$77579$861.99You Save$86.20
Ships on 09/14/2026
Lowest Price GuaranteeSmall Block
- Oil Pan
- Ford Mustang 351W Block
- Front T-Sump
- 7 quarts
Designed by Ford Racing for use on its crate engines, the M-6675-FT351 oil pan is constructed to deliver power and durability. Features: - Full length scraper to direct oil away from the crankshaft and return ot to the sump
- Full length bolt in aluminum louvered windage tray to control oil
- Baffling and trap doors in the sump to keep the pickup submerged during performance driving
- 9 quart capacity
- Sump depth is 8.1" T-Sump width is 12.15" T-Sump length from the front of the pan is 10.4"
- Includes 3/8" NPT bung to mount an oil temperature sending unit
- Includes 3/8" NPT access hole to adjust oil pump spring pressure
- Fits standard 351 Windsor block oil pan bolt pattern
- Designed to clear 4-bolt main cap Ford Racing BOSS 351 blocks
- Semi-gloss black powder coat finish
- Laser cut and TIG welded in precision fixtures for consistent OEM level fit
- Used on FRPP M-6007-Z427FFT Crate Engine
- Use pickup M-6622-FT351
Whether you're dressing up or simply replacing an old oil pan on your vehicle, Ford Racing has the oil pan for you. These Ford oil pans are available in several finishes for a variety of applications, so there's sure to be one to suit your needs and your style.
- Full Length Scraper To Direct Oil Away From The Crankshaft
- Full Length Bolt In Louvered Windage Tray To Control Oil
- Baffling And Trap Doors In The Sump
- 9?Quart Capacity
- Incl. 3/8 NPT Bung To Mount An Oil Temperature Sending Unit
- Incl. 3/8 NPT Access Hole To Adjust Oil Pump Spring Pressure
- Designed To Clear 4-Bolt Main Cap Boss 351 Blocks
- Semi-Gloss Black Powdercoat Finish
Part TypeOil Pan
BrandFORD PERFORMANCE
Package Height9.6
Package Width17.9
Package Length23.8
Weight18.05 PG
Part CategoryPerformance Parts
Oil Pan Capacity9 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
QuantitySold individually
Oil Pan FinishBlack powdercoated
Kickout PositionDriver and passenger side
Oil Pan MaterialSteel
Gaskets IncludedNo
Oil Pan Depth8.1 in (205.7 mm)
Rear Main Seal Style1-piece, 2-piece
Sump LocationFront
Crank Scraper IncludedYes
Windage Tray IncludedYes
Dipstick LocationPassenger side
Kicked OutYes
Stroker ClearancedNo
Vendor Part NumberM-6675-FT351
Package Qty1
Package TypeEA
