TREMEC Transmission Warranty

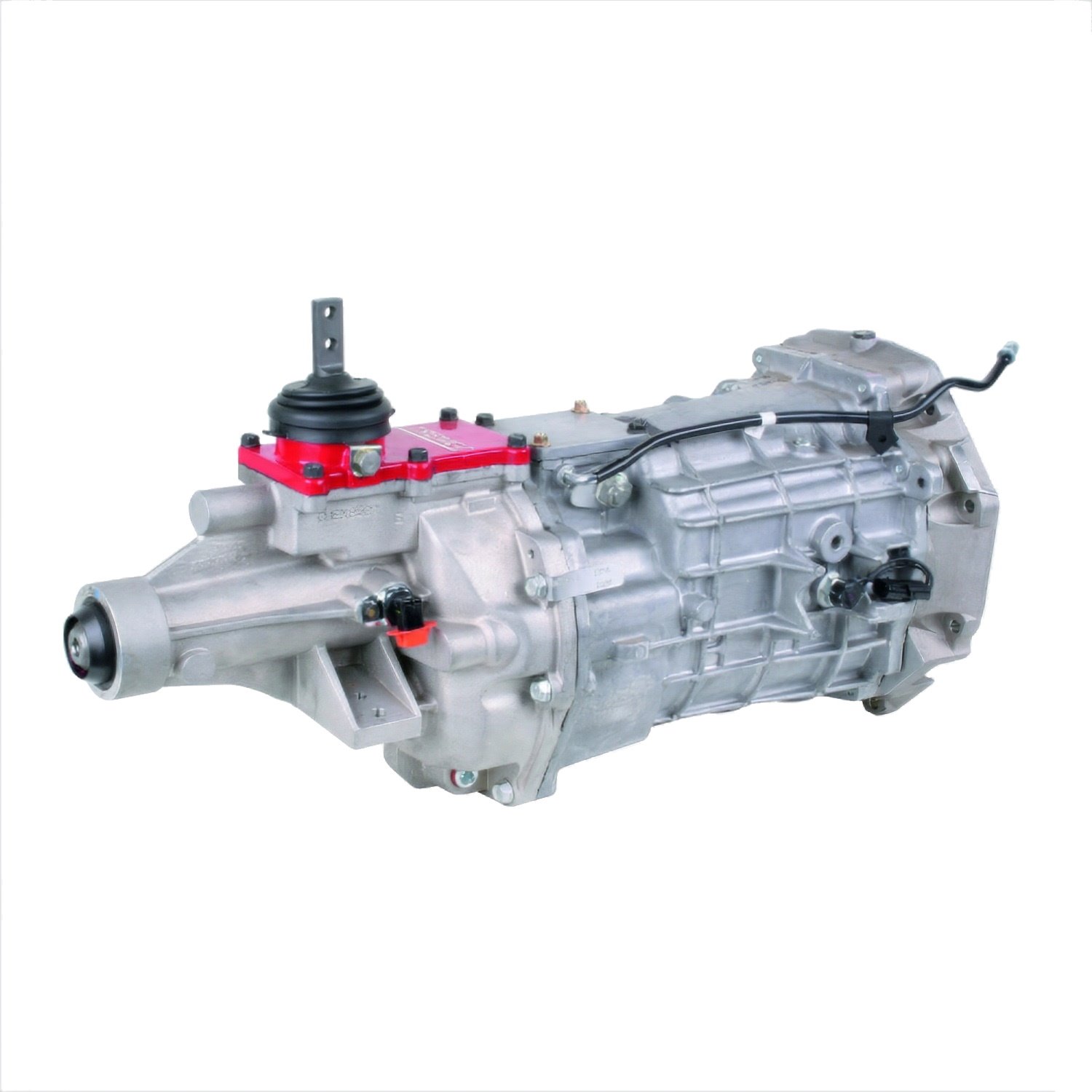

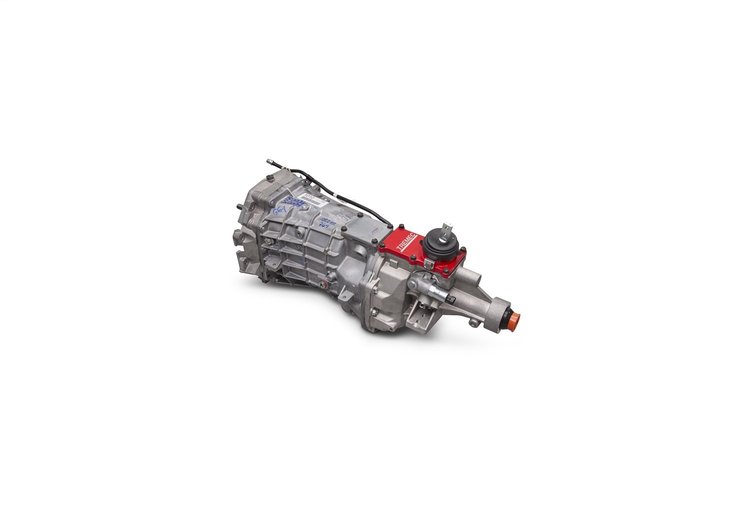

Ford Performance M-7003-M6266 6-Speed Fitment:

• 289-351W
• 4.6L SOHC/DOHC Can be used in 1999-2004 Mustangs and Cobras
• 5.0L Ti-VCT engines

Ford Performance M-7003-M6266 6-Speed Notes:

• For SBF 302/351 use Quicktime bellhousing part # 8031
• For modular 4.6L/5.0L/5.4L use Quicktime bellhousing part # 8080
• May require shorter driveshaft, modified crossmember/trans mount and other minor modifications

Ford Performance M-7003-M6266 6-Speed Specs:

• Gear ratios: 1st 2.66; 2nd 1.78; 3rd 1.30; 4th 1.00; 5th 0.80; 6th 0.63
• 26-spline input shaft; 31-spline output shaft
• Provision for both mechanical and electronic speedometer
• Mechanical speedo drive gear has 7 teeth
• Electronic speedo rotor has 12 positions
• 4615 Steel Gears
• Billet Aluminum Shifter

These are the same Tremec HD 5-speed manual transmissions used in the 1995 Mustang Cobra "R" models with the 351 5.8L engines.
