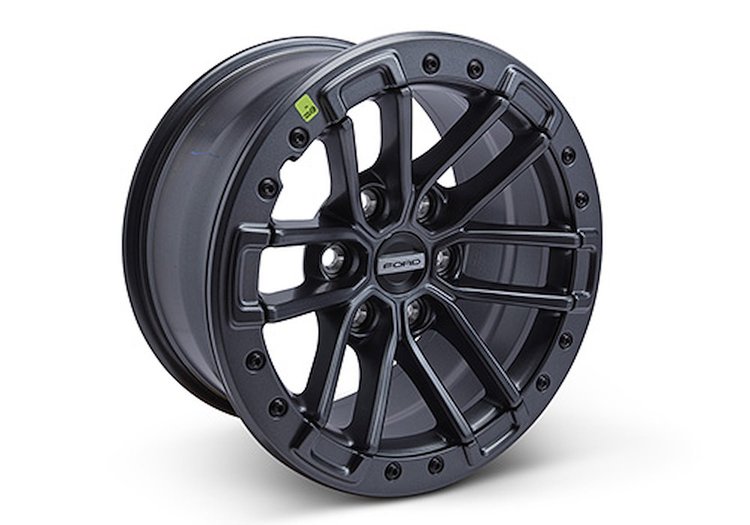

Beadlock Wheel Kit for 2019-2020 Ford RAPTOR [Size: 17" x 8.5"]

Name: Beadlock Wheel Kit for 2019-2020 Ford RAPTOR [Size: 17" x 8.5"]
Brand: FORD PERFORMANCE
SKU: 397-M1007DC1785A
Price: 880.00 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

F-150

Beadlock Wheel Kit

2019-2020 Ford F-150 RAPTOR

Size: 17" x 8.5"

Bolt Pattern: 6 x 135 mm

Back Spacing: 156.5 mm

Offset: 34 mm

Center Bore: 87.10 mm

Finish: Magnetic Gray

Ford Performance M-1007-DC1785A Wheel Kit
The Ford F-150 Raptor Bead Lock Wheel Kit includes everything needed to upgrade your Raptor to have off-road bead-locking capability Wheel and standard trim ring are finished in a magnetic gray paint finish, clear coated to OEM standards.
Ford Performance M-1007-DC1785A Wheel Kit Includes:
17" Forged aluminum bead lock capable wheel and standard trim ring
Ford Performance Bead-lock ring kit M-1021-RA1
Unique "FORD" Raptor center cap
17" x 8.5" wide
6-lug, 135mm bolt circle
34 mm offset
156.5 mm backspacing
Use with M-1180-B TPMS Sensor and Tool kit
Suitable for Overlanding

Part TypeWheel
BrandFORD PERFORMANCE
Package Height11.75
Package Width20.0
Package Length20.0
Weight42.0 PG
Part CategoryPerformance Parts
Wheel Size17 x 8.5 in.
ColorGray
Wheel StyleBeadlock
QuantitySold as Kit
BeadlockSingle Beadlock
Wheel MaterialCast Aluminum
Functional BeadlockYes
Wheel FinishGray
Back Spacing156.5 mm
Bolt Pattern6 x 135 mm
Offset1.338 in.
Beadlock IncludedYes
Backspacing156.5 mm
Beadlock FunctionalYes
Center Bore Diameter87.1 mm
Wheel Bolt Pattern6 x 135 mm
Wheel Diameter17 in.
Wheel TypeJeep, Truck, SUV Wheels
Part FitmentDirect Fit
Wheel Offset34 mm (1.3386 in)
Wheel Width8.5 in.
Vendor Part NumberM-1007-DC1785A
Package Qty1
Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
