F14 Series Drag Wheels Size: 17" x 5"
Product Discontinued
FORGESTAR WHEELSPART NUMBER: 427-F14D1750CCB

F14 Series Drag Wheels Size: 17" x 5"

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

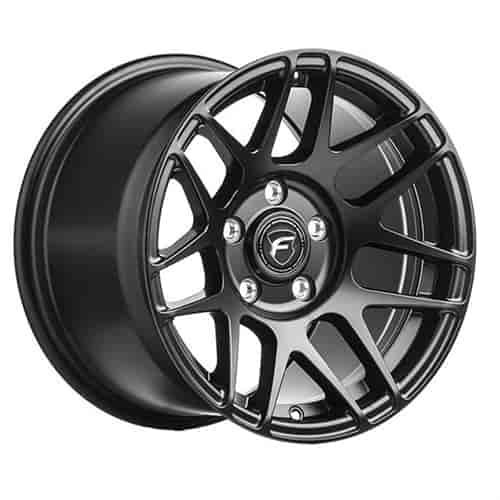

F14 17" x 5" Wheels - Matte Black
    F14 Drag Flow Formed Monoblock Wheel
  • Size: 17" x 5"
  • Bolt Circle: 5 x 115mm
  • Backspacing: 1.898"
  • Offset: -28 mm
  • Bore: 78 mm
  • Lug Seat: Conical
  • Matte Black Finish

Forgestar F14 Series Drag Wheels are revolutionary rotary forged wheels designed for drag racing, a real breakthrough in the industry. F14 Drag wheels feature a much higher load rating compared to current cast aluminum drag racing wheel standards; while optimizing weight reduction due to the rotary forged process. As a result, your ride will be able to impose significantly more stress on the lighter F14 series drag wheels. Forgestar wheels are available in multiple finishes, diameters and bolt patterns, as well as multiple widths so they can be used as front or rear drag racing wheels.

Features:

  • Rotary Forged Flow Formed Barrel
  • Lightweight
  • Clears Big Brake Kit
  • Monoblock Construction
Part TypeWheel
Product LineForgestar F14 Drag Wheels
BrandFORGESTAR WHEELS
Package Height10.0
Package Width21.0
Package Length21.0
Weight28.0 PG
Part CategoryPerformance Parts
Backspacing1.9 In.
Small Diameter Lug Nuts RequiredNo
Load Rating (Lbs.)1,520
Center Bore Diameter3.071 in.
Load Rating1520 lbs.
Wheel Bolt Pattern5 x 115 mm
Wheel Diameter17 in.
Wheel TypeDrag Race Wheels
Back Spacing1.9 in (48.26 mm)
Wheel Width5 in.
Bolt Pattern5 x 115 mm
Hub Centric Ring CompatibleYes
Vendor Part NumberF14D1750CCB
Package Qty1
Package TypeEA
