Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
17 in. Diameter

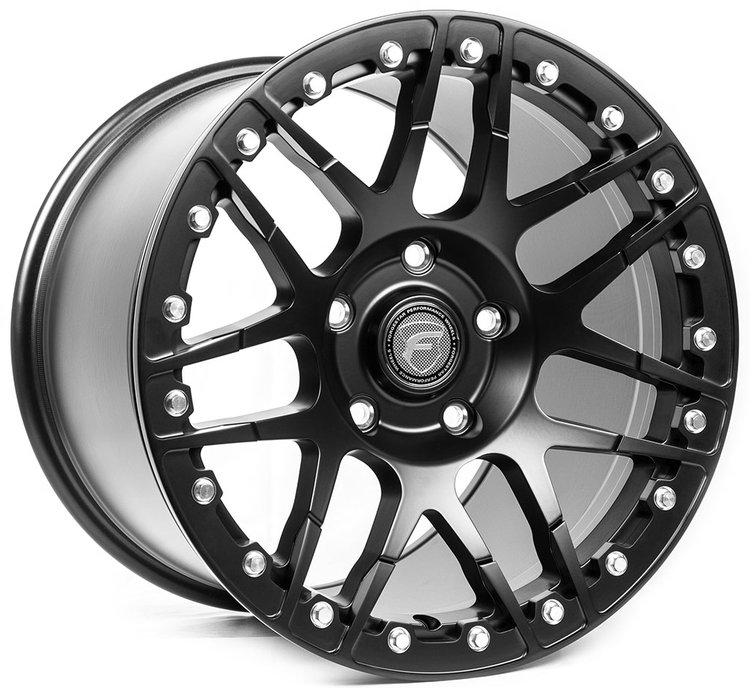

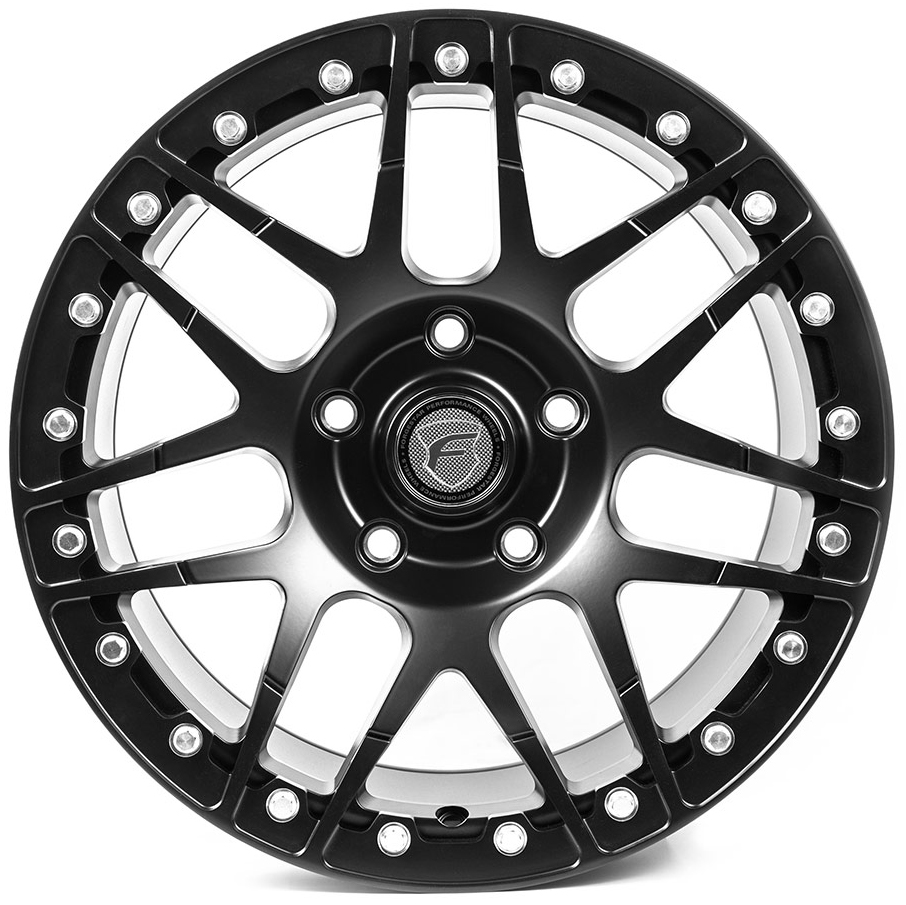

F14 Beadlock Drag Race WheelDiameter: 17 in. x 10 in. Bolt Pattern: 5 x 120 mm Back Spacing: 7.300 in. Offset: +45 mm Hub Bore: 78.100 mm Load: 1,520 lbs. Satin Black Finish Sold Individually
Features:
- Deep concave profile for high-offset applications
- Rotary-forged flow formed barrel delivers strength and weight savings
- Monoblock construction
- The spoke design is integrated into the Beadlock ring
- 6061-aluminum Beadlock ring
- Threaded steel Helicoils
- Dual bead knurling
Notes:
- All Forgestar wheels are drilled to cone seat specs. Conical/tapered-style lug nuts will be required
- Will clear big brake kits
Part TypeWheel
BrandFORGESTAR WHEELS
Package Height12.0
Package Width19.0
Package Length19.0
Part CategoryPerformance Parts
Lug Nut Seat TypeConical
Load Rating (Lbs.)1,520
Quantity1
Wheel MaterialForged Aluminum
Wheel FinishSatin Black
Beadlock FunctionalYes
Functional BeadlockYes
Offset1.771 in.
Beadlock IncludedYes
Center Cap IncludedYes
Lug Nut Seat StyleConical
Load Rating1520 lbs.
Wheel Diameter17 in.
Wheel Offset45 mm (1.7716 in)
Wheel TypeDrag Race Wheels
Wheel Width10 in.
Vendor Part NumberF28170022P45
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
